STONE
STONE
STONE

Claddings for fireplaces

STONE

marble frame

A game of colors and finishes, a fireplace with a unique design that does not go unnoticed: the large external frame in Giallo Reale marble is split, while the internal one is made of glossy finish. The large silk-screened glass emphasizes the flame.

The LIGHT 01 one-piece wood-burning fireplace with an all-ceramic glass door, which can be opened with ups and downs for easy cleaning. The combustion chamber is lined with CMtech®, a light-colored refractory material made with significant thicknesses. In the upper part the Catalyst-Flamebreaker is made of CMtech®2 ceramic refractory. The fireplace can be integrated with two optional kits for air ducting and distribution. The first kit keeps the fireplace natural convection, while the second converts it to ventilated and forced air.

LIGHT 01

STONE
European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Available versions

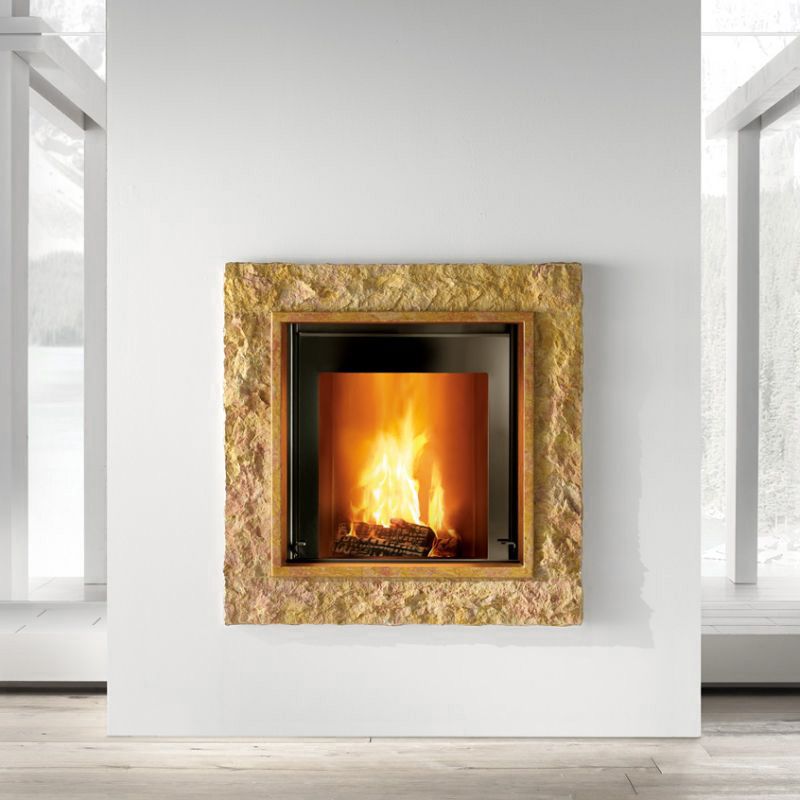

STONE 01 wood burning <br> with LIGHT 01

STONE 01 wood burning
with LIGHT 01

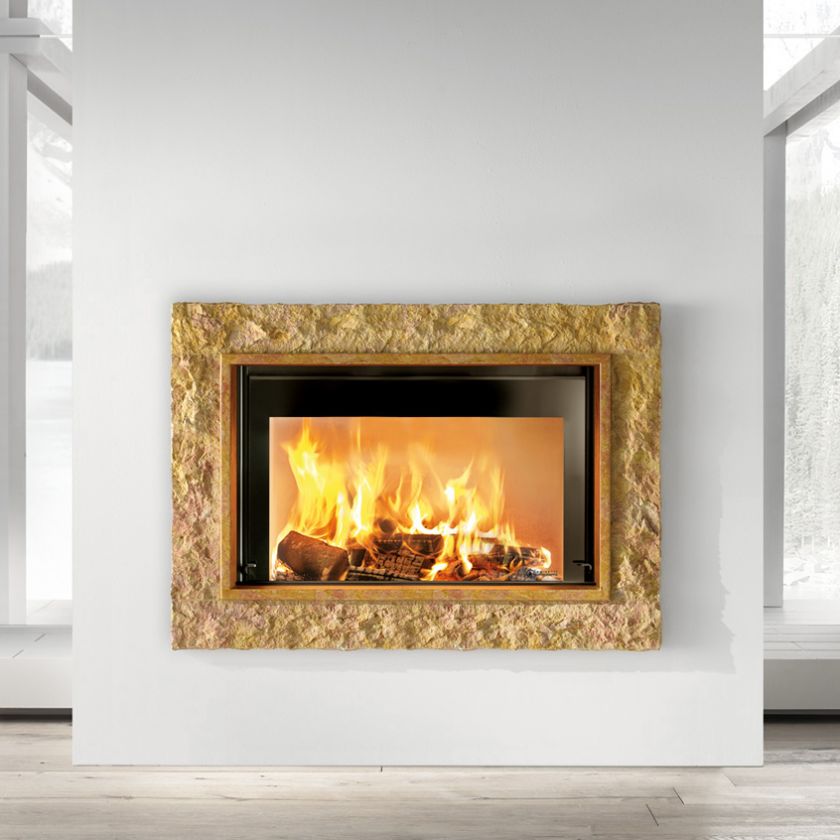

STONE 02 wood burning <br> with LIGHT 02

STONE 02 wood burning
with LIGHT 02

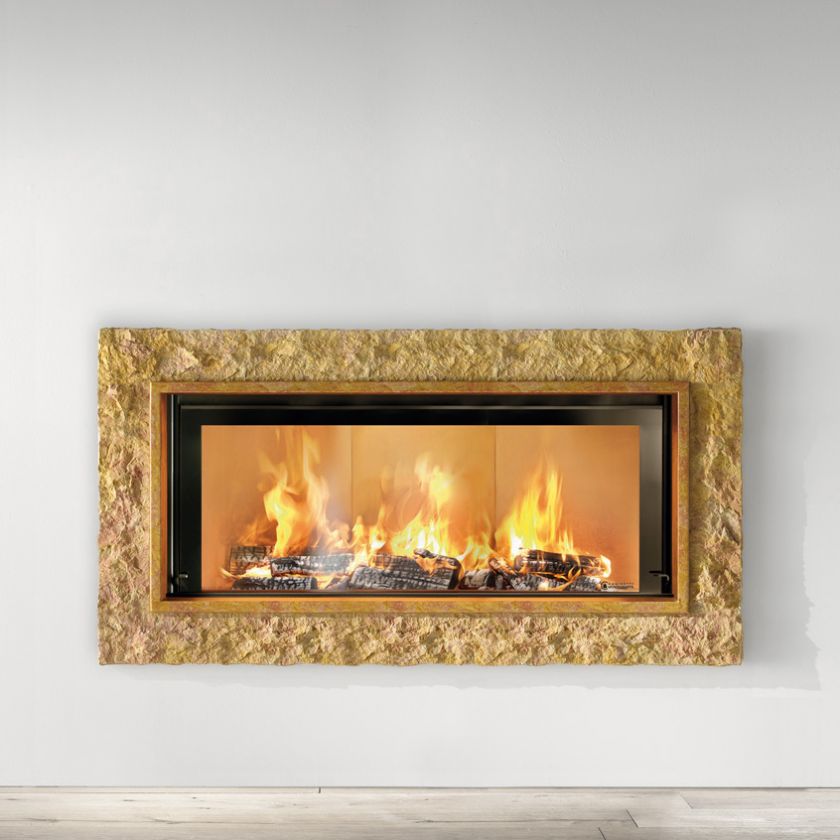

STONE 06 wood burning <br> with LIGHT 06

STONE 06 wood burning
with LIGHT 06

Technical data

  classe-AA
  LIGHT 01
  natural convection
Quality class (DM 186 - 7/11/2017) 4-stelle
Global thermal output 13,9 kW
Nominal thermal output 12,0 kW
CO emission at 13% of oxygen 0,065 %
Efficiency (η) 86 %
Primary Particulate (PP) (at 13% oxygen) 19 mg/Nm3
COT (at 13% oxygen) 39 mg/Nm3
Fuel consumption 3,10 kg/h
Smokes mass flow 8,1 g/s
Smokes temperature 256 °C
Flue draught pressure 12 Pa
Smokes exite pipe Ø 180 mm
Internal chimney section Ø 18 / 18x18 cm
Minimum flue height 4 m
Heatable surface with certified power 138 *mq
Net weight - Weight with packaging 191 - 206 kg
* with the conditions reported in the General Catalogue

Features

marble frame

caminetto a legna con porta interamente in vetro ceramico, apertura a saliscendi e a ribalta per la pulizia. Camera di combustione rivestita in CMtech®, refrattario realizzato con spessori importanti; nella parte superiore il Catalizzatore-Frangifiamma è in CMtech®2, refrattario ceramico. Il caminetto può essere completato con due kit opzionali per distribuzione dell’aria calda sia nella versione naturale che ventilata.

Download area
