NOIR XW

Wood stoves

NOIR XW

wood natural convection, forced convection, ducted warm air

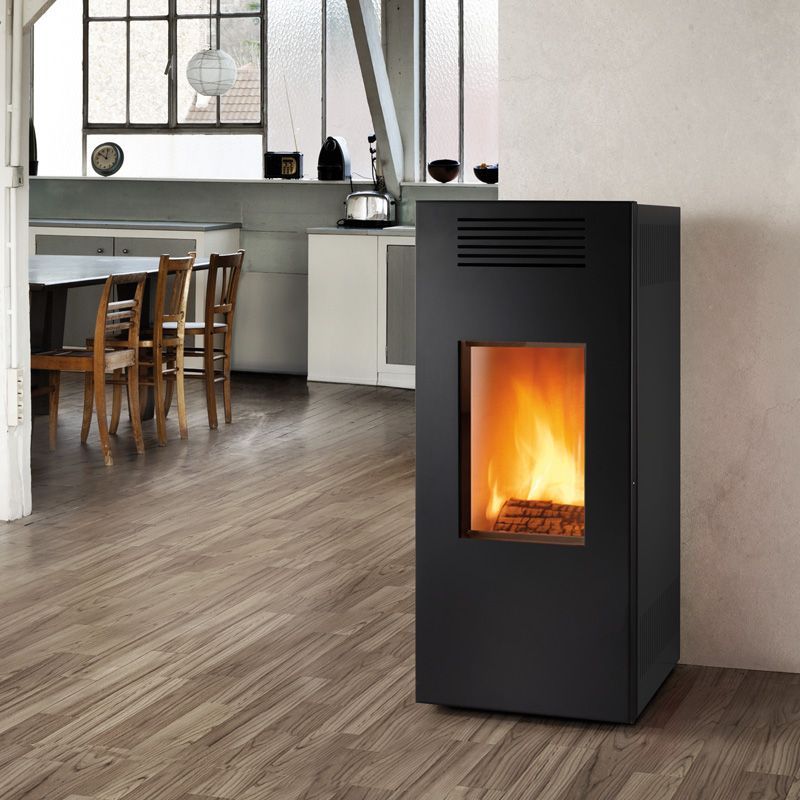

Sharp lines and ultra-minimal design distinguish Noir XW. The structure and the covering are both in painted steel, with a large screen-printed glass that emphasizes the flame. The combustion chamber is decorated with an elegant deaign. The Noir XW upholstery is available in two colours: red and black.

Pleasant aesthetics

Space space optimization

Longer life, guaranteed by the use of cast iron

Reduction of wood consumption for greater savings

Reduction of polluting emissions

Minimal and easy maintenance: the cleaning of the stove is quick and easy

Available in natural convention, with hot air kit or ducted hot air kit

Easy installation of the ventilation kit

Adjustment of the ducting fan

Certified to get the benefits of tax deductions

LH11V

structure body and cladding: L 48 x P 53,5 x H 109 cm

European reference standard for wood stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark
Find reseller Request information

Available versions

red

red

black

black

Technical data

  classe-A
  LH11V
nominal thermal output 11,0 kW
CO emission at 13% oxygen 0,076 %
efficiency 85,1 %
average fuel consumption 2,67 kg/h
flue gas mass flow 8,3 g/s
flue gas temperature 199 °C
flue draught pressure 10 Pa
flue exite pipe Ø 150 mm
min. height of chimney flue 3 m
net weight 127 kg
weight with packaging 139 kg



LH11V

Download area
