EVOCA XW

Wood stoves

EVOCA XW

wood forced convection

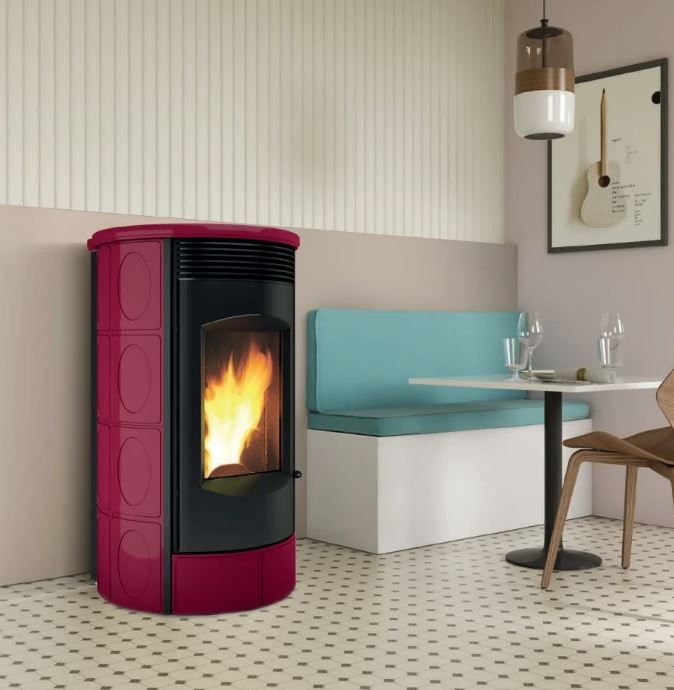

Round shape and sophisticated design, Evoca XW can be easily adapted to both classic and modern style interiors. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval motif. The splaying emphasizes the silk-screened glass and the broad vision of the fire. Evoca XW has a steel structure and majolica coating, and it is available in three colours: glossy white, cream, glossy bordeaux.

Pleasant aesthetics

Space space optimization

Longer life, guaranteed by the use of cast iron

Reduction of wood consumption for greater savings

Reduction of polluting emissions

Minimal and easy maintenance: the cleaning of the stove is quick and easy

Adjustment of the ducting fan

Certified to get the benefits of tax deductions

LH11V

structure body and cladding: L 48 x P 53,5 x H 109 cm

European reference standard for wood stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark
Find reseller Request information

Available versions

glossy white

glossy white

cream

cream

bordeaux

bordeaux

Technical data

  classe-A
  LH11V
nominal thermal output 11,0 kW
CO emission at 13% oxygen 0,076 %
efficiency 85,1 %
average fuel consumption 2,67 kg/h
flue gas mass flow 8,3 g/s
flue gas temperature 199 °C
flue draught pressure 10 Pa
flue exite pipe Ø 150 mm
min. height of chimney flue 3 m
net weight 127 kg
weight with packaging 139 kg



LH11V
