Wood inserts

COMPACT 70V - 80V

Wood insert with reversible door, made entirely of ceramic glass.

Wood-burning insert with ventilated and channeled hot air with reversible door entirely in ceramic glass. Compact is available in 70 cm and 80 cm sizes. Thanks to its simple lines, it easily adapts to any type of environment. The beauty of simplicity: combustion chamber complete with catalyst-flame arrester lined with CMtech 2, ceramic refractory, with cast iron fire bed. Wide view of the fire.
Available with black painted steel frame.

COMPACT 70V - 80V

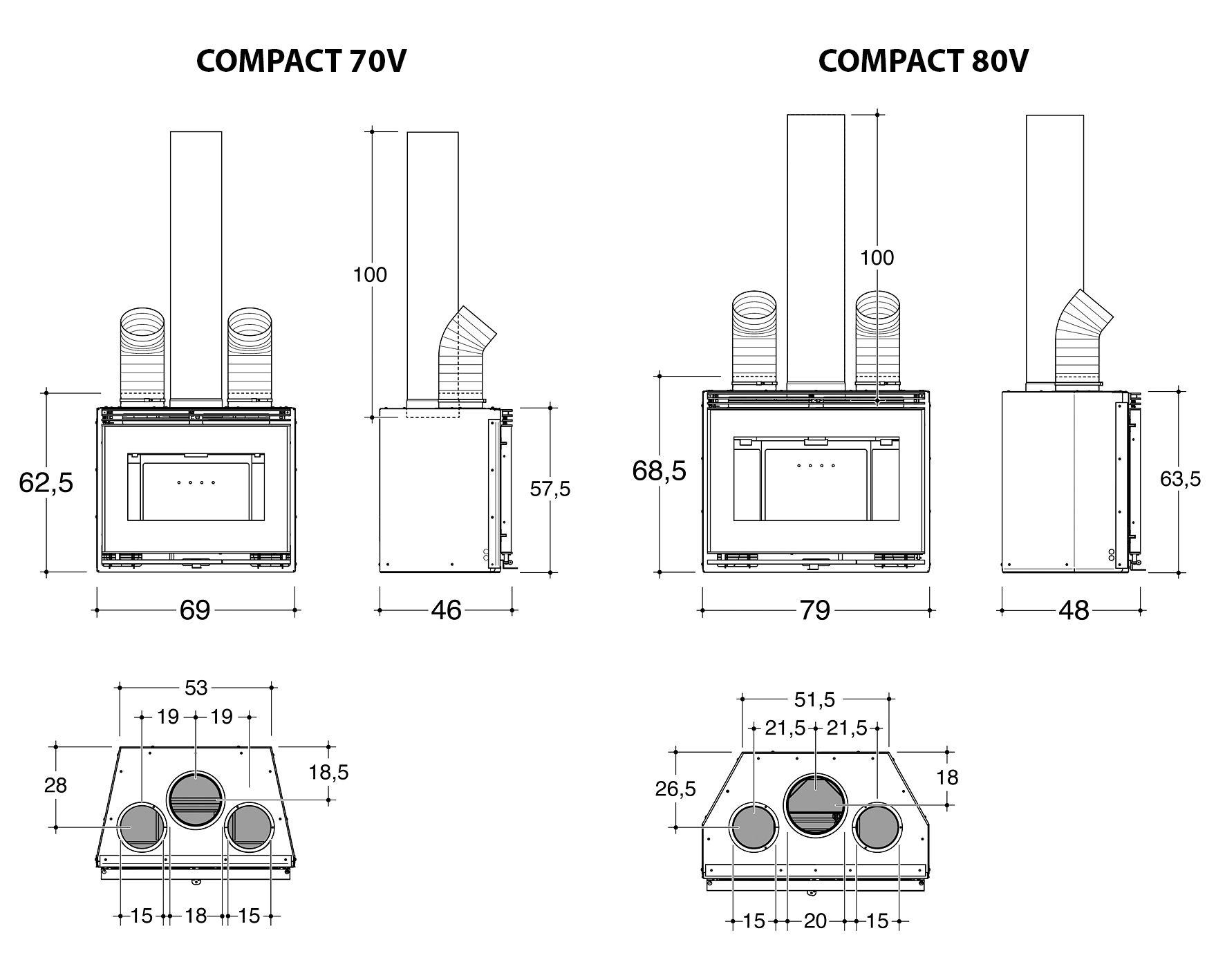

Available in two measures: 70 and 80 cm length.

European reference standard for inserts and fireplaces European standards conformity mark

Technical data

  classe-AA classe-AA

  COMPACT 70V COMPACT 80V
output 10,0 11,1 kW
nominal thermal output 8,6 9,5 kW
CO emission at 13% oxygen 0,0701 0,0901 %
efficiency 85,4 85,3 %
average fuel consumption 2,4 2,68 kg/h
flue gas mass flow 7,5 8,0 g/s
flue gas temperature 198 205 °C
flue draught pressure 11 12 Pa
flue exit pipe Ø 180 Ø 200 mm
internal section of chimney flue Ø 18 Ø 20 cm
min. height of chimney flue 3 3 m
net weight 102 120 kg
weight with packaging 112 130 kg

COMPACT 70V - 80V

Features

Compact is available in the sizes of 70 cm (Compact 70V) and 80 cm (Compact 80V). Thanks to its simple lines, it easily adapts to any type of environment.
