COMPACT 70EP
COMPACT 70EP

Wood inserts

COMPACT 70EP

Natural convection hot air wood insert

COMPACT 70EP is the natural convention wood-burning insert, with ceramic glass door that offers a beautiful view over the fire, creating a warm and welcoming atmosphere in any environment. Advanced combustion chamber, complete with Deflector-Flamebreaker, coated in vermiculite, a material that increases efficiency and caloric yield. The firetop is made with a high thickness grate and includes a practical ash drawer, which facilitates the cleaning. Included is a Ø 15 cm smoke outlet pipe, 100 cm long with turbulator, which improves thermal efficiency. Thanks to the possibility of installation even on existing fireplaces with reduced depth, up to at a minimum of 44 cm, the COMPACT 70EP represents an ideal solution for renovations, combining functionality and design in a simple and elegant way. Special kits allow you to transform COMPACT 70EP into a ventilated hot air heating system, ensuring greater flexibility and comfort in distribution of the heat. Available with Minimal 70V black painted steel frame.

COMPACT 70EP

COMPACT 70EP

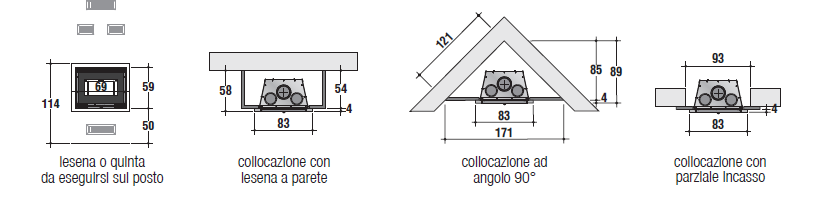

COMPACT 70EP + MINIMAL 70V

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Technical data

  classe-AA
  COMPACT 70EP
Quality class (DM 186 - 7/11/2017) 5-stelle
Global thermal output 8,7 kW
Nominal thermal output 7,6 kW
CO emission at 13% of oxygen 0,0283 %
Efficiency (η) 87 %
Primary Particulate (PP) (at 13% oxygen) 8 mg/Nm3
COT (at 13% of oxygen) 10 mg/Nm3
Fuel consumption 2,10 kg/h
Smokes mass flow 8,0 g/s
Smokes temperature 151 °C
Flue draught pressure 12 Pa
Smokes exite pipe Ø 150 mm
Internal flue section Ø 15 cm
Minimum flue height 3 m
Heatable surface with certified power 87 *mq
Net weight - Weight with packaging 85 - 95 kg
* with the conditions reported in the General Catalogue
COMPACT 70EP

Features

Natural convection hot air wood insert

COMPACT 70EP can be configured in the following modes:
- NATURAL CONVECTION (standard configuration)
- MANUALLY VENTILATED, using the appropriate ventilation kit (accessory)
- AUTOMATED VENTILATED, via ventilation kit and touch screen control unit (both accessories).


In all modes you can distribute hot air up to a distance of 150 cm using the HOT AIR DISTRIBUTION KIT (accessory).
