LIGHT 06
LIGHT 06

Wood fireplaces

LIGHT 06

wood-burning fireplace

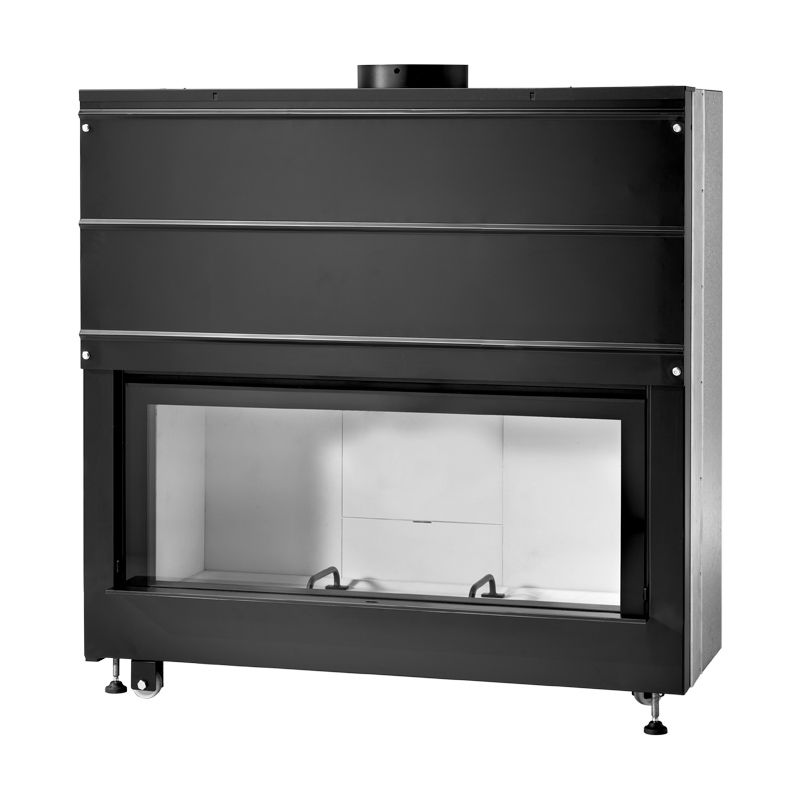

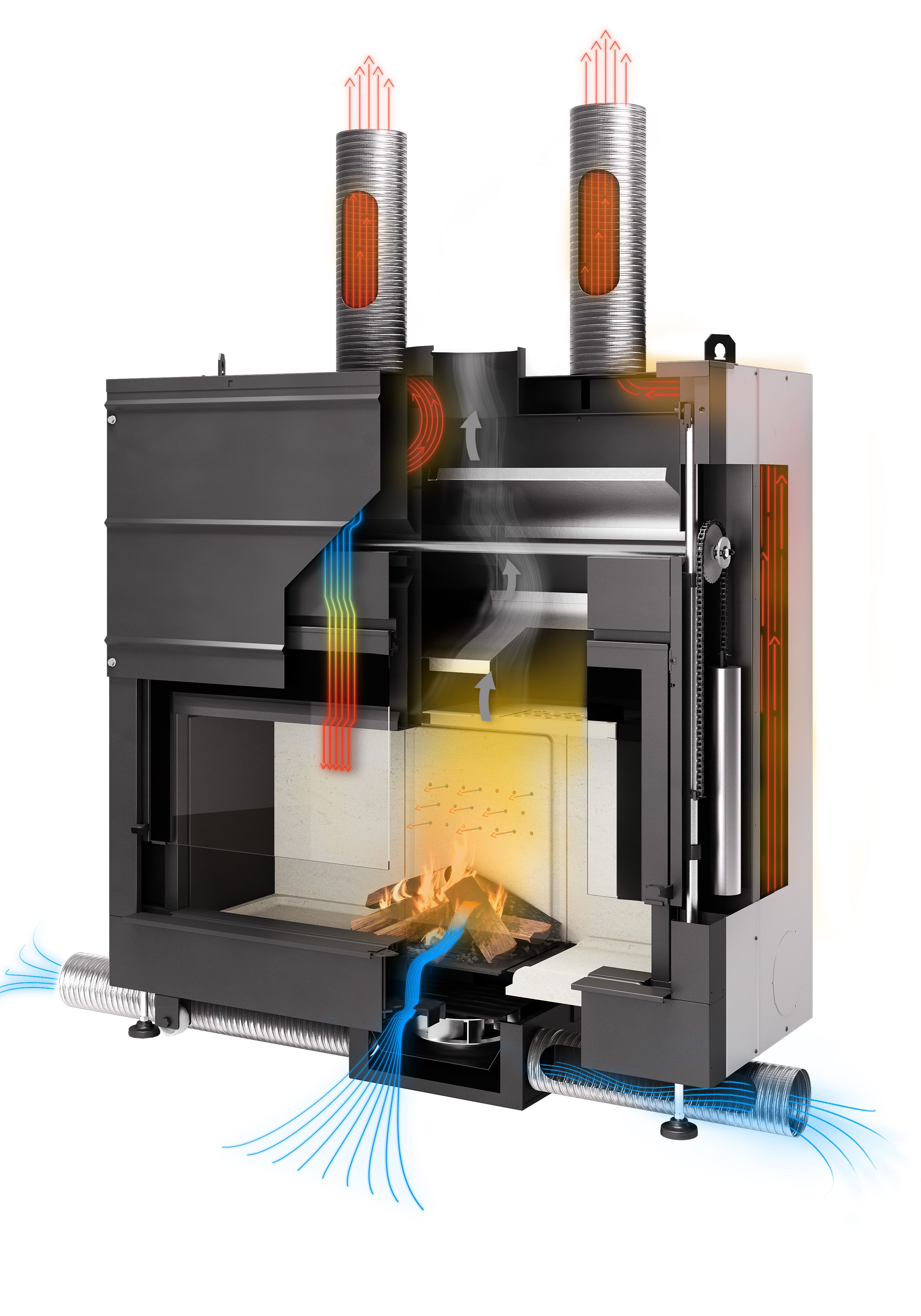

Wood-burning fireplace characterized by a rectangular shape with an “extra-large” horizontal development. The door is entirely in ceramic glass with sliding mechanism and flap opening for cleaning. Combustion chamber lined with CMtech®, refractory made with significant thicknesses; in the upper part the Catalyst-flame arrester is in CMtech®2, a ceramic refractory.

LIGHT 06

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Technical data

  classe-AA classe-AA
  LIGHT 06 21N LIGHT 06 22V
   natural convection  ventilated
Quality class (DM 186 - 7/11/2017) 4-stelle 4-stelle
Global thermal output 20,5 21,7 kW
Nominal thermal output 17,0 18,5 kW
CO emission at 13% of oxygen 0,0999 0,0940 %
Efficiency (η) 83 85 %
Primary Particulate (PP) (at 13% oxygen) 20 19 mg/Nm3
COT (at 13% oxygen) 20 21 mg/Nm3
Fuel consumption 4,6 4,8 kg/h
Smokes mass flow 14,0 19,0 g/s
Smokes temperature 225 162 °C
Flue draught pressure 12 12 Pa
Smokes exite pipe Ø 250 Ø 250 mm
Internal flue section Ø 25 / 25x25 Ø 25 / 25x25 cm
Minimum flue height 5 5 m
Air inlet ducts 2 x Ø 15 2 x Ø 15 cm
Heatable surface with certified power 195 212 *mq
Net weight - Weight with packaging 289 - 316 306 - 335 kg
* with the conditions reported in the General Catalogue
