Wood fireplaces

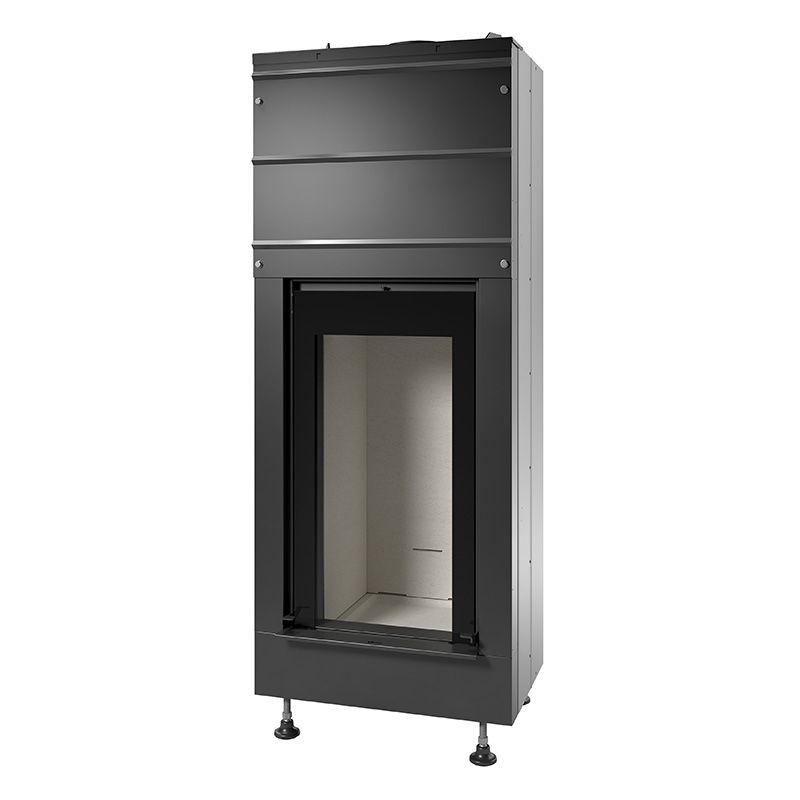

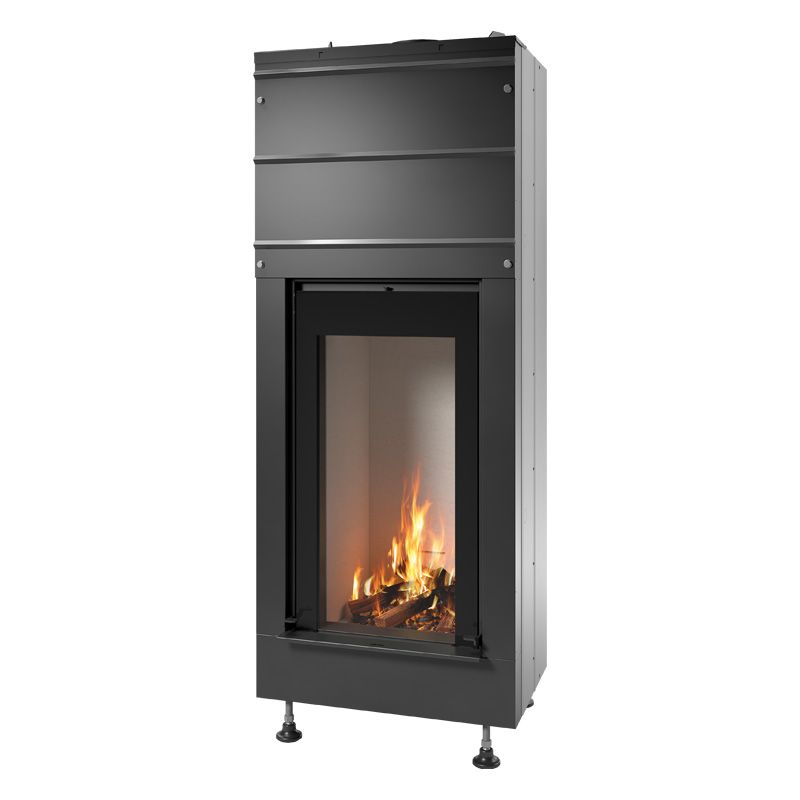

LIGHT 03

wood-burning fireplace

LIGHT 03

Swiss ordinance on Air Pollution Control (OlAt) Swiss ordinance on Air Pollution Control (OlAt) German order against air pollution European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Technical data

  classe-AA
  LIGHT 03

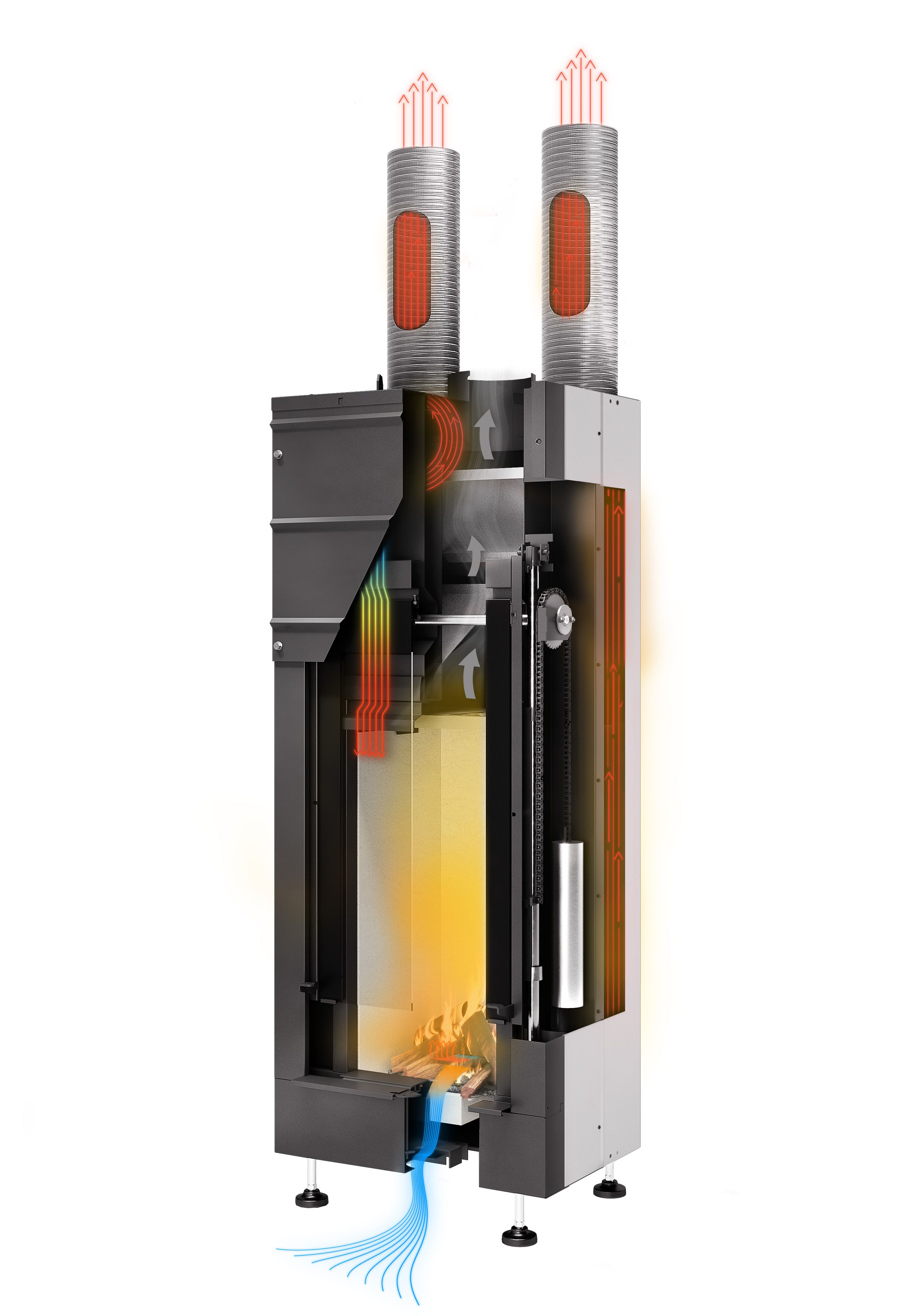

  natural convection
output 12,7 kW
nominal thermal output 10,5 kW
CO emission at 13% oxygen 0,098 %
efficiency 82,5 %
average fuel consumption 3,0 kg/h
flue gas mass flow 10,10 g/s
flue gas temperature 253 °C
flue draught pressure 11 Pa
flue exite pipe Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 cm
min. height of chimney flue 4 m
air inlet ducts 2 x Ø 15 cm
net weight 200 kg
weight with packaging 215 kg
