  • Current: LIGHT 02 available in natural or ventilated convection version, with large ceramic glass door, high efficiency CMtech® chamber and solutions designed for high performance and simplified maintenance.
LIGHT 02
LIGHT 02
LIGHT 02

Wood fireplaces

LIGHT 02

available in natural or ventilated convection version, with large ceramic glass door, high efficiency CMtech® chamber and solutions designed for high performance and simplified maintenance.

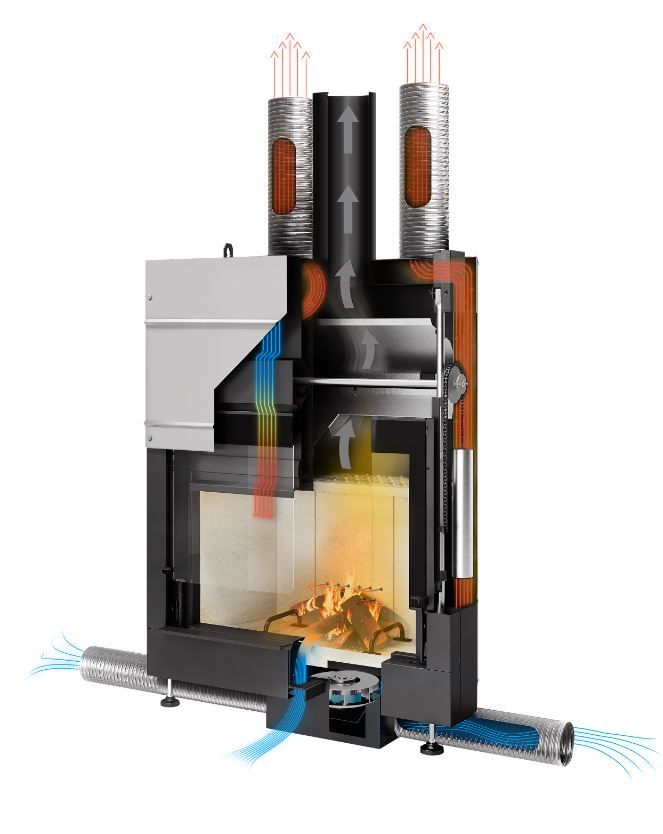

Wood-burning fireplace that is characterized by the width of the door entirely in ceramic glass with sliding and flap opening for cleaning. Combustion chamber lined with CMtech®, refractory made with significant thicknesses; in the upper part the Catalyst-flame arrester is in CMtech®2, a ceramic refractory.

LIGHT 02

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Technical data

  classe-AA classe-AA
  LIGHT 02N S LIGHT 02V E
  natural convection ventilated
Quality class (DM 186 - 7/11/2017) 4-stelle 5-stelle
Global thermal output 15,6 19,6 kW
Nominal thermal output 13,0 16,7 kW
CO emission at 13% of oxygen 0,086 0,0418 %
Efficiency (η) 83 85 %
Primary Particulate (PP) (at 13% oxygen) 24 14 mg/Nm3
COT (at 13% oxygen) 56 29 mg/Nm3
Fuel consumption 3,5 4,61 kg/h
Smokes mass flow 11,5 15,2 g/s
Smokes temperature 214 192 °C
Flue draught pressure 12 11 Pa
Fuel exite pipe Ø 200 Ø 200 mm
Internal flue section Ø 20 / 20x20 Ø 20 / 20x20 cm
Minimum flue height 4 4 m
Air inlet ducts 2 x Ø 15 2 x Ø 15 cm
Heatable surface with certified power 149 192 *mq
Net weight - Weight with packaging 235 - 258 255 - 278 kg
LIGHT 02

Features

available in natural or ventilated convection version, with large ceramic glass door, high efficiency CMtech® chamber and solutions designed for high performance and simplified maintenance.
