Wood fireplaces

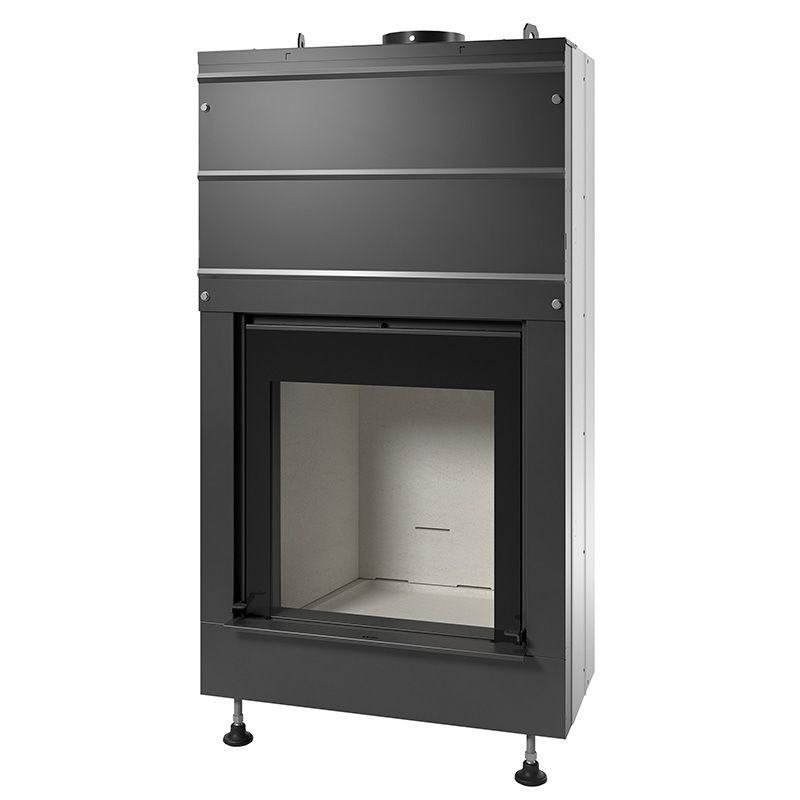

LIGHT 01

wood-burning fireplace

Wood-burning fireplace with door entirely in ceramic glass, hinged opening and flap opening for cleaning. Combustion chamber lined with CMtech®, refractory made with significant thicknesses; in the upper part the Catalyst-flame arrester is in CMtech®2, a ceramic refractory. The fireplace can be completed with two optional kits for hot air distribution both in the natural and ventilated version.

LIGHT 01

Swiss ordinance on Air Pollution Control (OlAt) Swiss ordinance on Air Pollution Control (OlAt) German order against air pollution European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Technical data

  classe-AA
  LIGHT 01
  natural convection
output 7,8 - 15,6 kW
nominal thermal output 12,0 kW
CO emission at 13% oxygen 0,065 %
efficiency 86,0 %
average fuel consumption 3,30 kg/h
flue gas mass flow 8,10 g/s
flue gas temperature 256 °C
flue draught pressure 12 Pa
flue exite pipe Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 cm
min. height of chimney flue 4 m
net weight 191 kg
weight with packaging 206 kg
LIGHT 01
