Pellet thermostoves

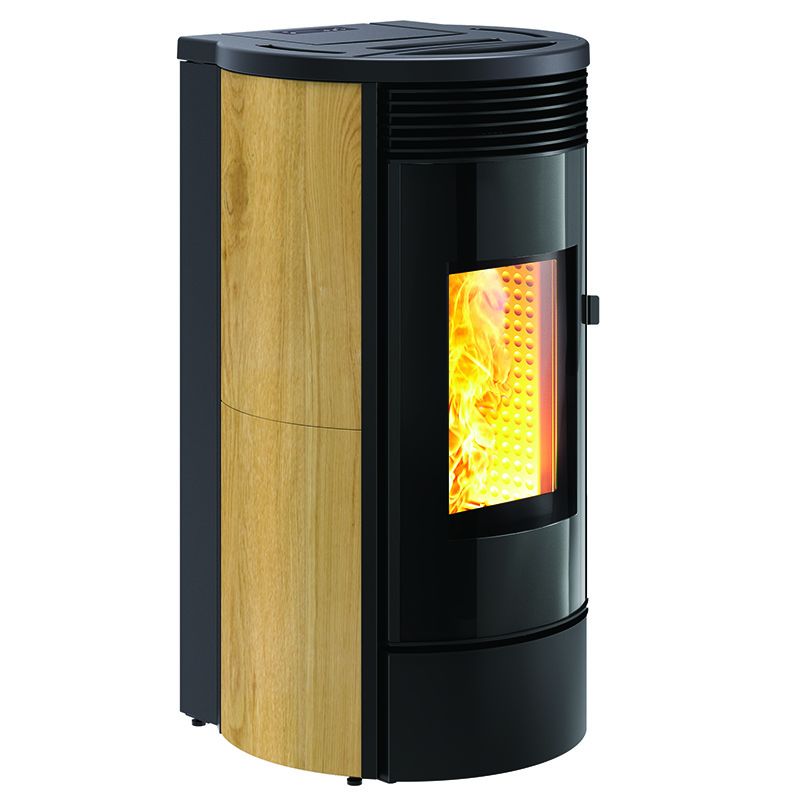

MARRA M

pellet stove for water heating, hermetic and ventilated

Majolica cladding with black top, round painted steel structure. External door with black painted curved glass.

Customization and adaptability to any type of environment

Possibility for the user to adjust the pellet combustion calibration

Predisposition for the combustion air channeling

Silence and maximum comfort

Reduction of consumption of pellets for greater savings

Reduction of polluting emissions

Maximum adaptability to all types of pellets, to the flue and to the different types of installation

Minimal and easy maintenance: the cleaning of the stove is quick and easy

Possibility to set the operating and starting water temperature of the circulator

Possibility to connect the thermostats and the room temperature probe

Possibility to connect the temperature probe and to set the temperature of the puffer

Possibility to install the primary and secondary circuit separation kit

Possibility of combining with another generator

Possibility to apply the ventilation kit (optional)

Certified to obtain the benefits of the Thermal Account 2.0 (for powers 12-15 kW) and tax deductions

MW AUP

structure body and cladding: L 56 x P 54 x H 110 cm

European reference standard for pellet stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Available versions

white

white

grey

grey

sugar

sugar

wood

wood

Technical data

  classe-AAA
  MW22 AUP
thermal power 21,3 kW
nominal thermal output 5,4 - 19,7 kW
heat output tranferred to room air 0,9 - 2,3 kW
heat output transferred to water 4,5 -17,4 kW
CO emission at 13% oxygen 0,004 %
efficiendy 92,4 %
fuel consumption 1,17 - 4,39 kg/h
smokes mass flow 6,8 - 14,3 g/s
smokes temperature 72 - 129 °C
flue draught pressure 5 Pa
fuel capacity 28 Kg
autonomy 23,5 - 6 h
fuel exit pipe Ø 100 mm
combustion air intake Ø 60 mm
net weight 153 kg
weight with packaging 164 kg
MW AUP
