FENDOR

Pellet thermostoves

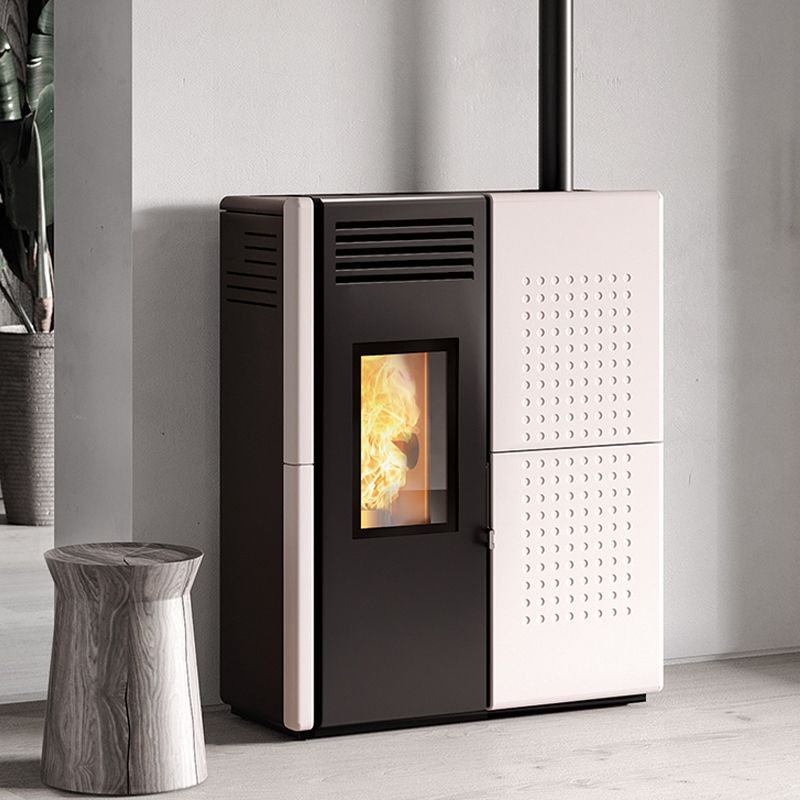

FENDOR

slim stove, pellet airtight for water heating

Fendor has a classic and, at the same time, contemporary design. It has majolica cladding and painted steel structure.
The Fendor upholstery is available in three colors: white, beige, gray.

Technological evolution (EVO)

Hermetic, certified for passive houses, studios and bedrooms

High yield to water

Flexibility of installation thanks to the different types of system that can be set

Possibility to set the operating and starting water temperature of the circulator

Possibility to connect the thermostats and the room temperature probe

Customization and adaptability to any type of environment

Possibility for the user to adjust the pellet combustion calibration

Possibility to connect the temperature probe and set the temperature of the puffer and the boiler and manage them at the same time

Optimal management of the three-way valve for the production of domestic hot water

Possibility of combining with another generator

Possibility to install the primary and secondary circuit separation kit

Predisposition for the combustion air channeling

Silence and maximum comfort

Optimization of space requirements thanks to the minimum depth

Minimal and easy maintenance: the cleaning of the stove is quick and easy

Reduction of consumption of pellets for greater savings

Reduction of polluting emissions

Maximum adaptability to all types of pellets, to the flue and to the different types of installation

Infallibility and ignition speed

Certified to obtain the benefits of the Thermal Account 2.0 and tax deductions

AW EVO

structure body and cladding: L 96 x P 36 x H 117 cm

European reference standard for pellet stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark
Find reseller Request information

Available versions

white

white

grey

grey

beige

beige

Technical data

  classe-AA classe-AA
  AW18 EVO AW22 EVO
thermal power 17,8 23,4 kW
nominal thermal output 7,7 - 16,7 7,7 - 21,8 kW
heat output tranferred to room air 1,8 - 3,7 1,8 - 4,7 kW
heat output transferred to water 5,8 - 13,0 5,8 - 17,1 kW
CO emission at 13% oxygen ≤ 0,02 ≤ 0,02 %
efficiendy ≥ 90,0 ≥ 90,0 %
fuel consumption 1,7 - 3,6 1,7 - 4,8 kg/h
smokes mass flow 8,3 - 11,8 8,3 - 14,0 g/s
smokes temperature 67 - 101 67 - 121 °C
flue draught pressure 6 6 Pa
fuel capacity 30 30 Kg
autonomy 17,5 - 8 17,5 - 6 h
fuel exit pipe Ø 80 Ø 80 mm
combustion air intake Ø 60 Ø 60 mm
net weight 144 147 kg
weight with packaging 160 163 kg
AW EVO

Features

slim stove, pellet airtight for water heating
