TILE M

Pellet stoves

TILE M

pellet stove

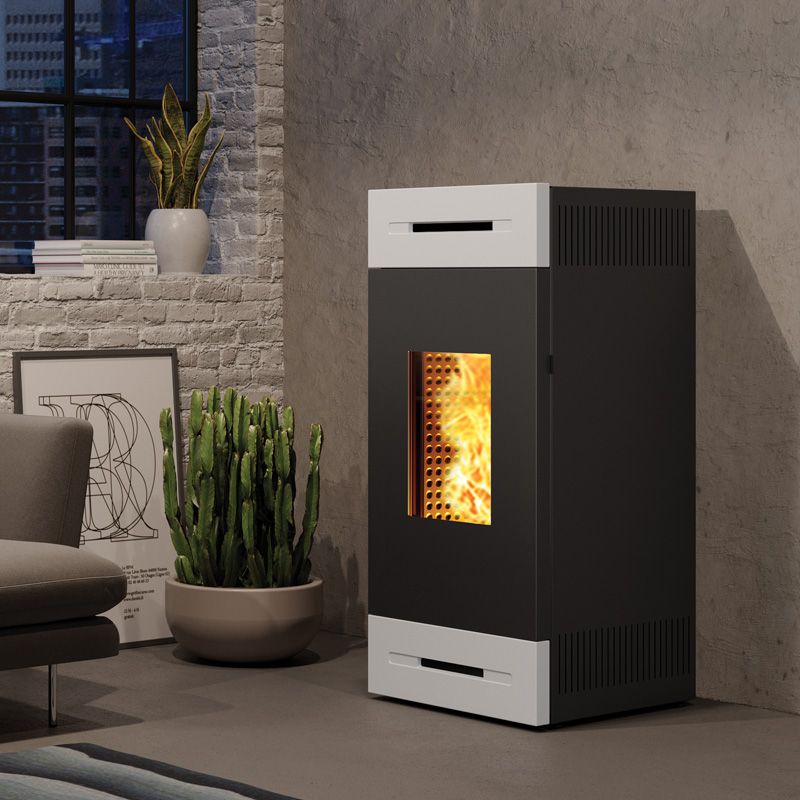

Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The Tile M coating is in majolica, the structure in painted steel. Tile M is available in two colors: matt white and dove colour.

MP AUP

structure body and cladding: L 48 x P 53,5 x H 109 cm

European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Available versions

matt white

matt white

dove colour

dove colour

Technical data

  classe-AA
  MP13 AUP
global thermal output 12,8 kW
nominal thermal output 4,9 - 11,3 kW
CO emission at 13% oxygen

0,02

 %
efficiency 88,0 %
fuel consumption 1,07 - 2,66 kg/h
smokes mass flow 4,3 - 7,4 g/s
smokes temperature 106 - 203 °C
flue draught pressure 6 Pa
fuel capacity 30 Kg
autonomy 28 - 11 h
fuel exite pipe Ø 80 mm
combustion air intake Ø 60 mm
net weight 114 kg
weight with packaging 126 kg
MP AUP
