EVOCA EVO

Pellet stoves

EVOCA EVO

with NXS10 EVO stove body with ventilated and ducted hot air, equipped with 3 fans and intelligent SMART ventilation that ensures extremely quiet operation.

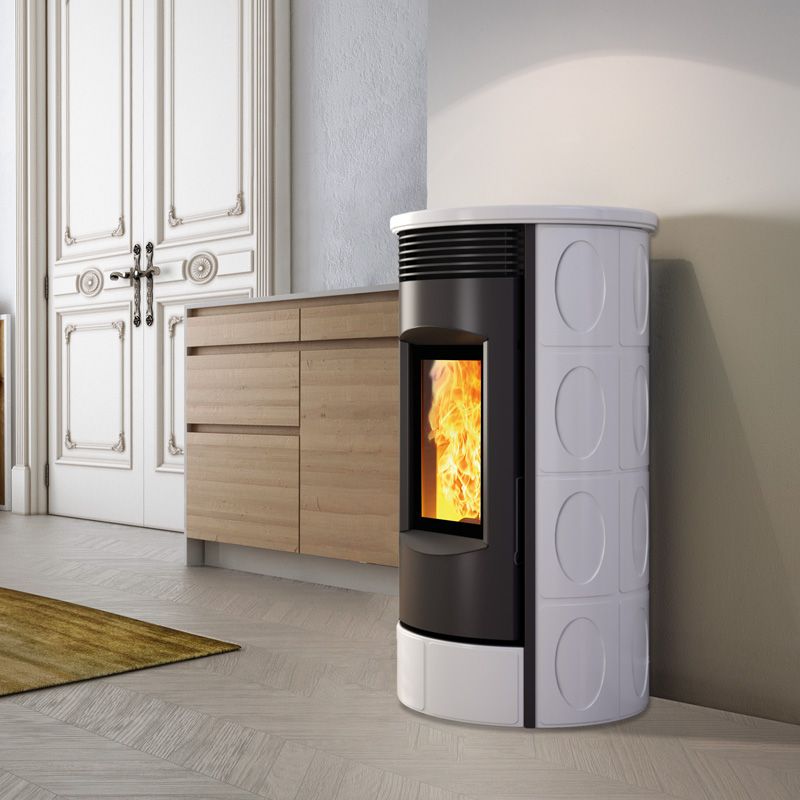

Round shape and sophisticated design, Evoca can be easily adapted to both classic and modern style interiors. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval motif. The splaying emphasizes the silk-screened glass and the broad vision of the fire. Evoca has a steel structure and majolica coating, and it is available in two colours: glossy white and cream.

• 5 stars

• Control panel featuring a backlit graphic display with digital icons TOUCH SCREEN

• Chronothermostat with adjustable temperature and power

• Electronic board with the possibility of managing external thermostats

• Cylindrical cast iron burner equipped with flame arrester deflector

• Efficient combustion control system TUTOR

• Double channeling, served by 2 independent centrifugal fans

• Tangential ambient air fan

• Removable ash drawer

• Wi-Fi module (optional)

NXS EVO

structure body and cladding: W 59 x D 54 x H 109 cm

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Available versions

glossy white

glossy white

cream

cream

Technical data

  classe-AA
  NXS10 EVO
Quality class (DM 186 - 7/11/2017) 5-stelle
Global thermal output 9,8 kW
Nominal thermal output 4,1 - 8,9 kW
Power rendered to the channeling 2,5 + 2,5 (55%) kW
CO emission at 13% of oxygen 0,0165 %
Efficiency (η) 90,9 %
Primary Particulate (PP) (at 13% oxygen) 14 mg/Nm3
COT (at 13% oxygen) 4 mg/Nm3
Fuel consumption 0,92 - 2,04 kg/h
Smokes mass flow 4,0 - 5,5 g/s
Smokes temperature 99-154 °C
Flue draught pressure 9 Pa
Fuel capacity 18 Kg
Autonomy 19,5 - 8,5 h
Smokes exite pipe Ø 80 mm
Combustion air intake Ø 50 mm
Heatable surface with certified power 102 *mq
Net weight - Weight with packaging 77 - 88 kg
* with the conditions reported in the General Catalogue



NXS EVO
