CUMA EVO

Pellet stoves

CUMA EVO

with NIS9 EVO hot air ventilated Wi-Fi stove body, integrated smoke outlet and smart SMART ventilation that makes the stove extremely quiet. Standard Wi-Fi.

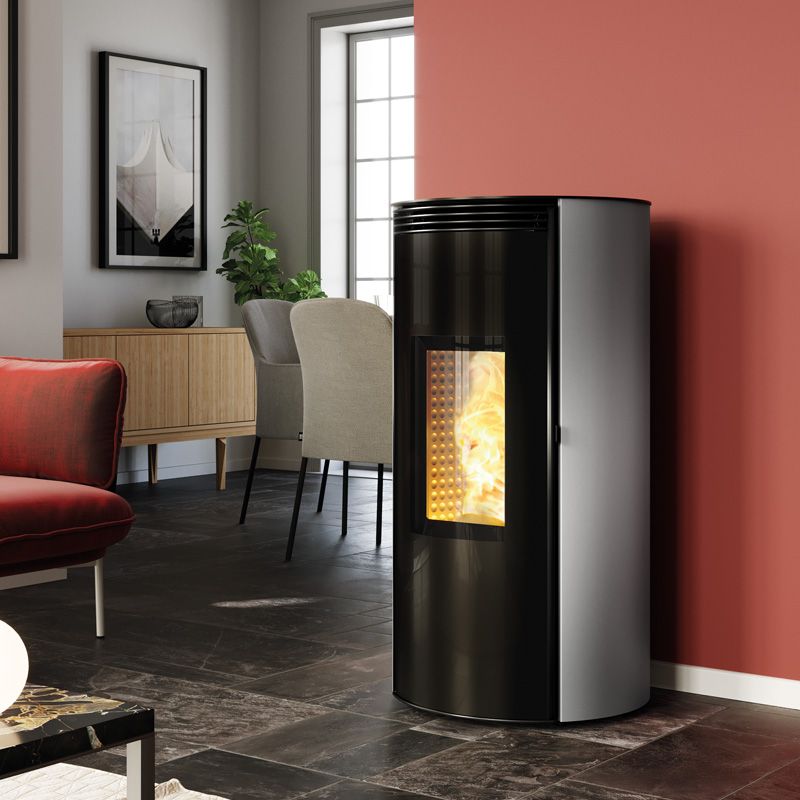

Cuma Evo is the stove with a circular shape and contemporary lines. It adapts perfectly to any environment, thanks to modern and elegant design. The external door is made entirely of black painted glass. The inner door follows the curvature and emphasizes the broad vision of the fire. The slots on the top follow the shape of the stove. The sides are smooth and without holes. The combustion chamber is decorated with an elegant pattern. The structure and the coating are made of painted steel. The Cuma Evo coating is available in four colors: moka, greige, black and metallic grey.

• 5 stars

• Control panel featuring a backlit graphic display with digital icons TOUCH SCREEN

• Integrated smoke outlet connection a “T”, equipped with inspection hatch

• Cylindrical cast iron burner equipped with flame arrester deflector

• Chronothermostat with adjustable temperature and powers

• Efficient combustion control system TUTOR

• Removable ash drawer

NIS EVO Wi-Fi

structure body and cladding: W 56 x P 56 x H 109 cm

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Available versions

moka

moka

greige

greige

white

white

metallic grey

metallic grey

Technical data

  classe-AAA
  NIS9 EVO Wi-Fi
Quality class (DM 186 - 7/11/2017) 5-stelle
Global thermal output 9,3 kW
Nominal thermal output 3,8 - 8,6 kW
CO emission at 13% of oxygen 0,0027 %
Efficiency (η) 92 %
Primary Particulate (PP) (at 13% oxygen) 14 mg/Nm3
COT (at 13% oxygen) 1 mg/Nm3
Fuel consumption 0,82 - 1,94 kg/h
Smokes mass flow 3,1 - 6,2 g/s
Smokes temperature 63 - 135 °C
Flue draught pressure 7 Pa
Fuel capacity 18,0 Kg
Autonomy 21,5 - 9,0 h
Smokes exite pipe Ø 80 mm
Combustion air intake Ø 60 mm
Heatable surface with certified power 98 *mq
Net weight - Weight with packaging 80 - 92 kg
* with the conditions reported in the General Catalogue
