BOMA EVO

Pellet stoves

BOMA EVO

with NXS10 EVO stove body with ventilated and ducted hot air, equipped with 3 fans and intelligent SMART ventilation that ensures extremely quiet operation.

Circular shape, modern design and simple lines distinguish the appearance of Boma Evo. Coating and structure in painted steel with rounded door. Boma Evo is available in four colours: white, metallic grey, red, black.

• 5 stars

• Control panel featuring a backlit graphic display with digital icons TOUCH SCREEN

• Chronothermostat with adjustable temperature and power

• Electronic board with the possibility of managing external thermostats

• Cylindrical cast iron burner equipped with flame arrester deflector

• Efficient combustion control system TUTOR

• Double channeling, served by 2 independent centrifugal fans

• Tangential ambient air fan

• Removable ash drawer

• Wi-Fi module (optional)

NXS EVO

structure body and cladding: W 53 x D 51 x H 109 cm

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Available versions

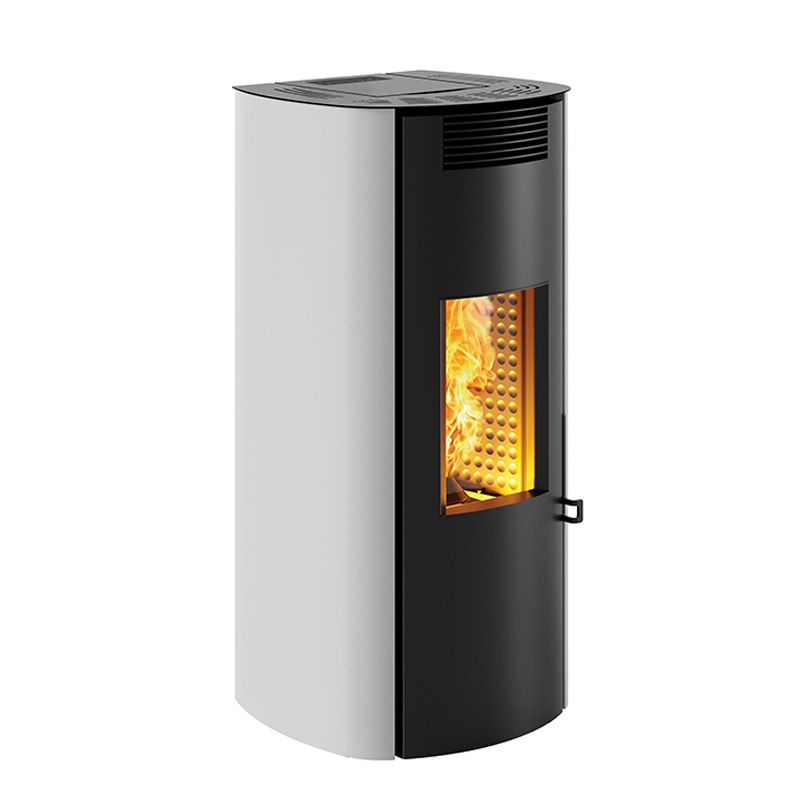

white

white

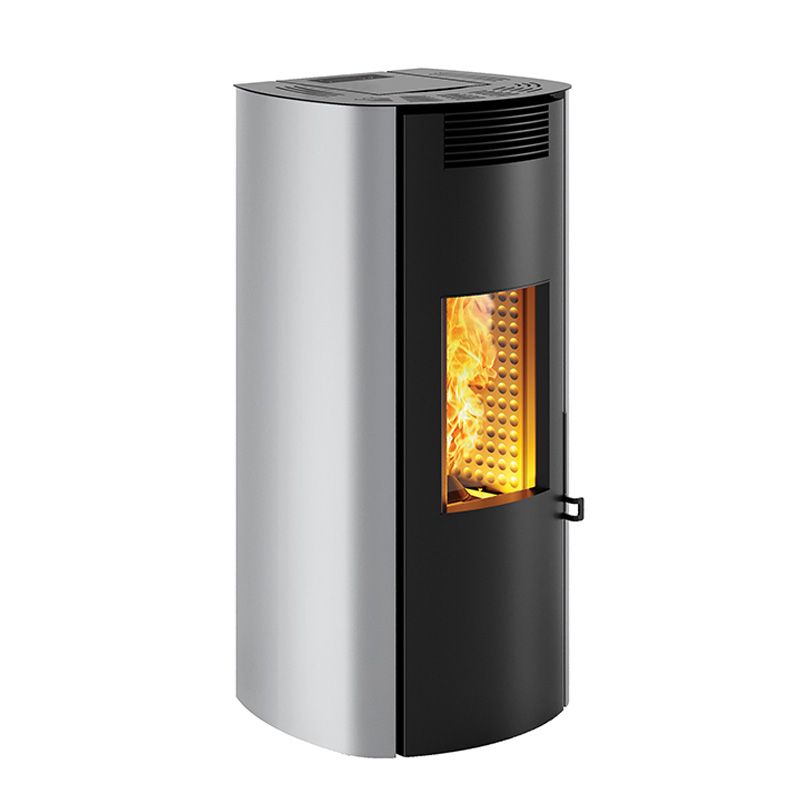

metallic grey

metallic grey

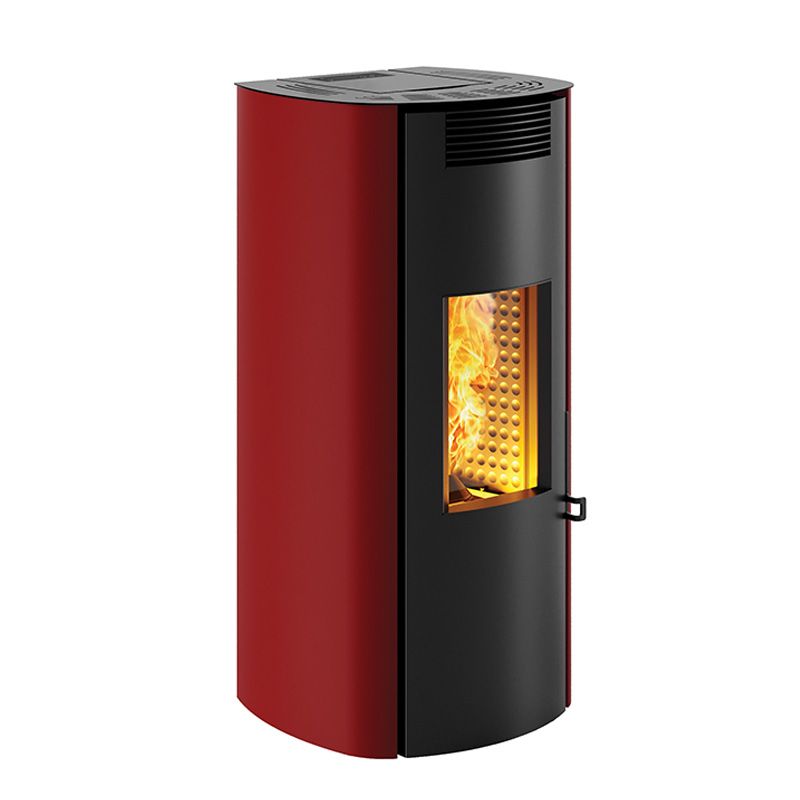

red

red

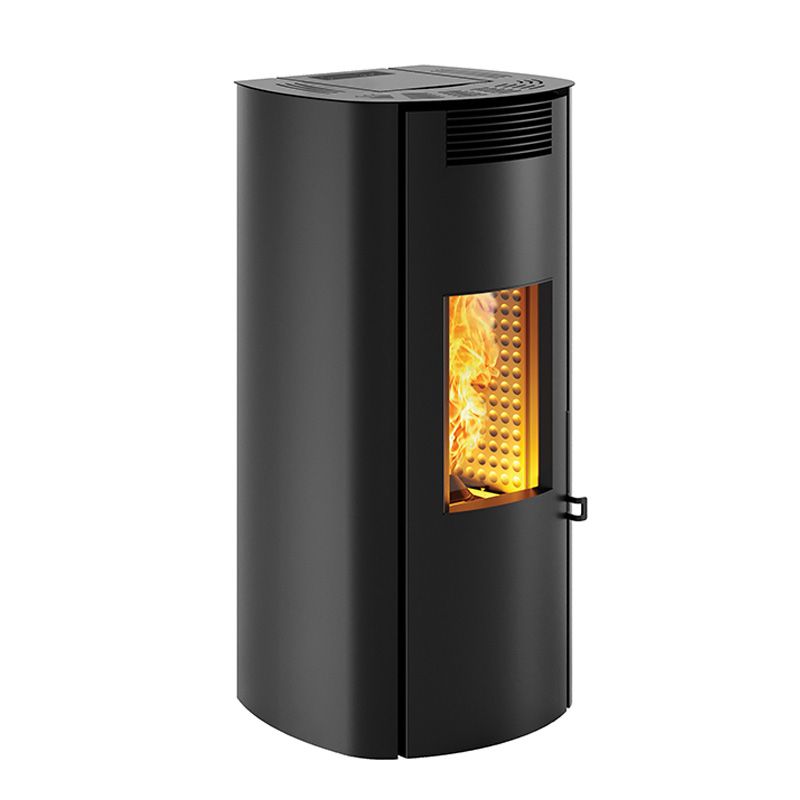

black

black

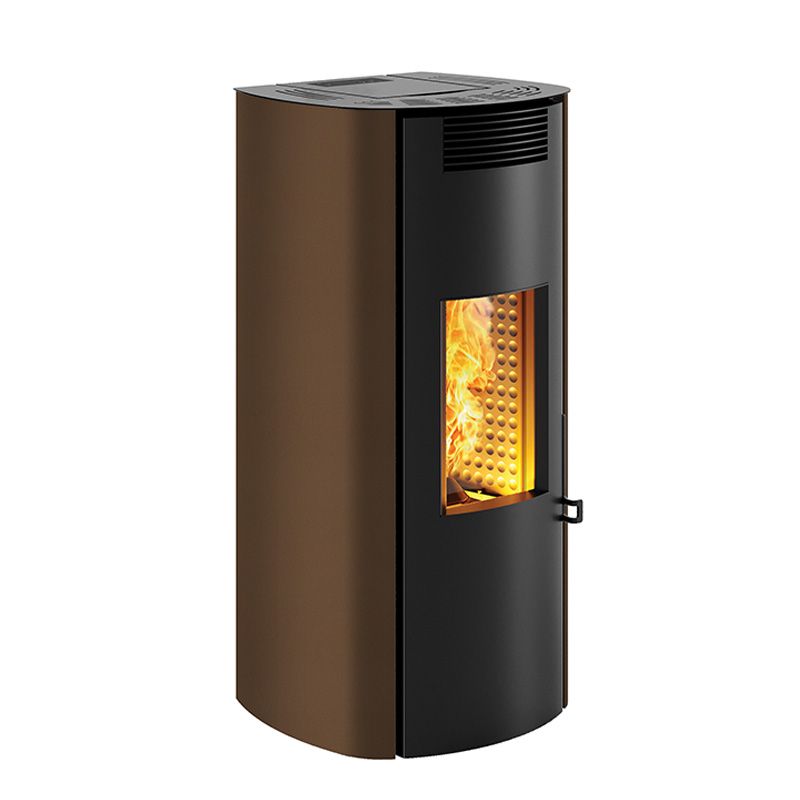

bronze

bronze

Technical data

  classe-AA
  NXS10 EVO
Quality class (DM 186 - 7/11/2017) 5-stelle
Global thermal output 9,8 kW
Nominal thermal output 4,1 - 8,9 kW
Power rendered to the channeling 2,5 + 2,5 (55%) kW
CO emission at 13% of oxygen 0,0165 %
Efficiency (η) 90,9 %
Primary Particulate (PP) (at 13% oxygen) 14 mg/Nm3
COT (at 13% oxygen) 4 mg/Nm3
Fuel consumption 0,92 - 2,04 kg/h
Smokes mass flow 4,0 - 5,5 g/s
Smokes temperature 99-154 °C
Flue draught pressure 9 Pa
Fuel capacity 18 Kg
Autonomy 19,5 - 8,5 h
Smokes exite pipe Ø 80 mm
Combustion air intake Ø 50 mm
Heatable surface with certified power 102 *mq
Net weight - Weight with packaging 77 - 88 kg
* with the conditions reported in the General Catalogue



NXS EVO
