VENGHÈ
VENGHÈ
VENGHÈ

claddings for fireplaces

VENGHÈ

marble frame

The large frame in precious Pietra Venghè, with 45 ° angular cuts, easily adapts to environments furnished in both classic and modern style, thanks to the warm tones and minimal design.

LIGHT 80 is the wood-burning fireplace for heating water, with a modern connotation. It is distinguished by the rectangular shape of the door, entirely made of ceramic glass; an opening with ups and downs for cleaning. Combustion chamber lined with CMtech®, refractory made with significant thicknesses, vermiculite deflector. The two accessories for the open expansion vessel and for the closed expansion vessel are optional.

LIGHT 80 S

VENGHÈ

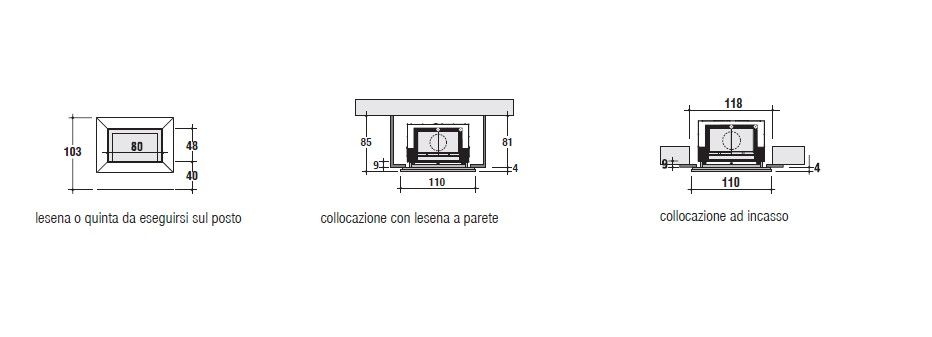

VENGHÈ 80L's dimensions

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Available versions

VENGHÈ 02 <br> with LIGHT 02

VENGHÈ 02
with LIGHT 02

VENGHÈ 80L <br> with LIGHT 80 S

VENGHÈ 80L
with LIGHT 80 S

VENGHÈ/M <br> wih MB MEGAFIRE <br> VENGHÈ/M <br> with MB MEGAIDRO W

VENGHÈ/M
wih MB MEGAFIRE
VENGHÈ/M
with MB MEGAIDRO W

Technical data

  classe-AA classe-AA
  LIGHT 80-21S LIGHT 80-27S
Quality class (DM 186 - 7/11/2017) 5-stelle 5-stelle
Global thermal output 24,4 29,5 kW
Nominal thermal output 21,0 25,4 kW
Power rendered to the environment 12,2 15,4 kW
Power rendered to water 8,8 10,0 kW
CO emission at 13% of oxygen 0,0447 0,0447 %
Efficiency (η) 86 86 %
Primary Particulate (PP) (at 13% oxygen) 15 15 mg/Nm3
COT (at 13% oxygen) 30 30 mg/Nm3
Maximum working pressure 1,5 1,5 bar
Fuel consumption 5,67 6,92 kg/h
Smokes mass flow 17,8 19,8 g/s
Smokes temperature 173 184 °C
Flue draught pressure 11 12 Pa
Fuel capacity Ø 250 Ø 250 mm
Internal flue section Ø 25 / 25x25 Ø 25 / 25x25 cm
Minimum flue height 5 5 m
Heatable surface with certified power 241 292 *mq
Net weight - Weight with packaging 308 - 332 308 - 332 kg
LIGHT 80 S

Features

marble frame
