SPAZIO CON PANCA

claddings for fireplaces

SPAZIO CON PANCA

marble cladding

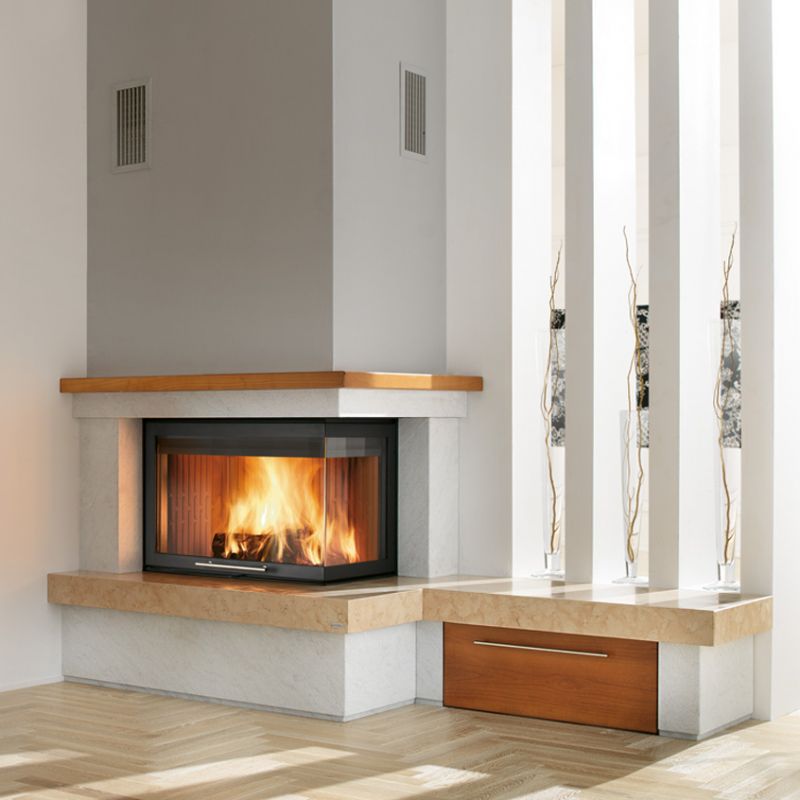

A harmony of materials with delicate tones: the top is made of light bushhammered marble, the base and the bench in polished Asiago marble, the beam and the drawer in light cherry wood veneer.

CM P05

SPAZIO CON PANCA

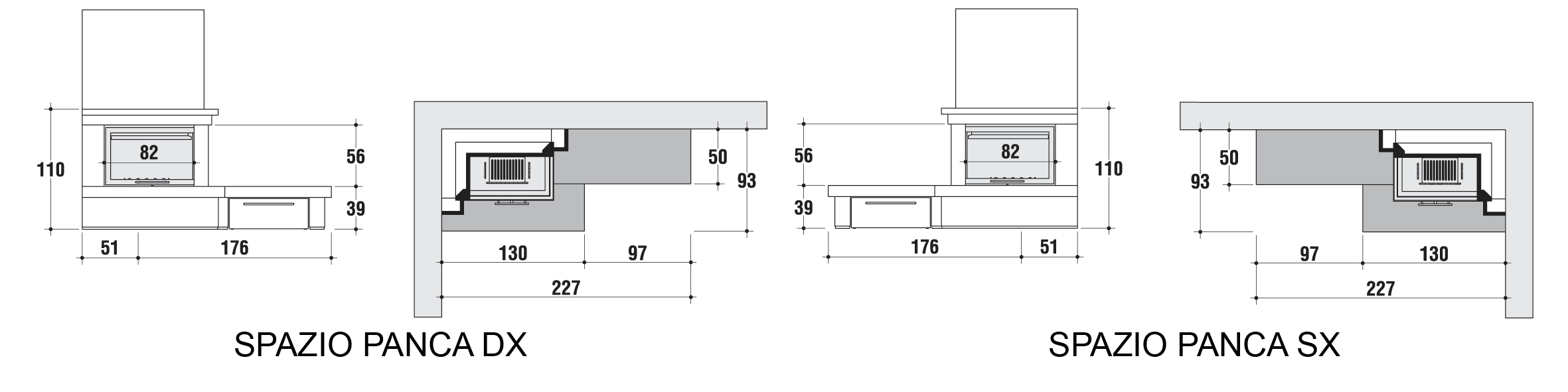

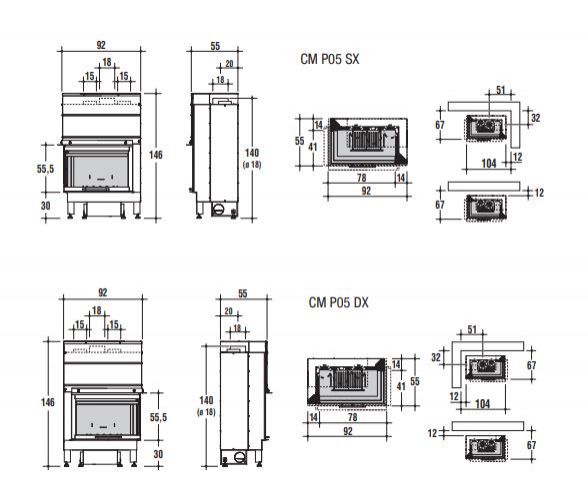

dimensioni SPAZIO CON PANCA

European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark
Find reseller Request information

Technical data

  classe-AA classe-AA
  CMP 05N CMP 05V
  natural convection forced convection
output 14,3 12,9 kW
nominal thermal output 11,0 11,0 kW
CO emission at 13% oxygen 0,052 0,052 %
efficiency 77,0 85,4 %
average fuel consumption 2,51 2,28 kg/h
flue gas mass flow 12,7 10,1 g/s
flue gas temperature 256 188 °C
flue draught pressure 12 12 Pa
flue exite pipe Ø 180 Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 Ø 18 / 18x18 cm
min. height of chimney flue 4 4 m
air inlet ducts 2 x Ø 12 2 x Ø 12 cm
net weight 234 237 kg
weight with packaging 257 260 kg
CM P05

Features

marble cladding

caminetto a legna con visione del fuoco su due lati senza interruzioni, grazie al vetro ceramico in un’unica lastra sagomata. Si distingue per la porta ad angolo con bordo in acciaio verniciato, apribile a saliscendi con maniglia in acciaio inox; apertura ad anta per la pulizia. Camera di combustione completa di Catalizzatore-Frangifiamma rivestita in CMtech®2, refrattario ceramico, con piano fuoco in ghisa. Sono disponibili versioni ad aria calda ventilata o a convezione naturale.

Download area
