claddings for fireplaces

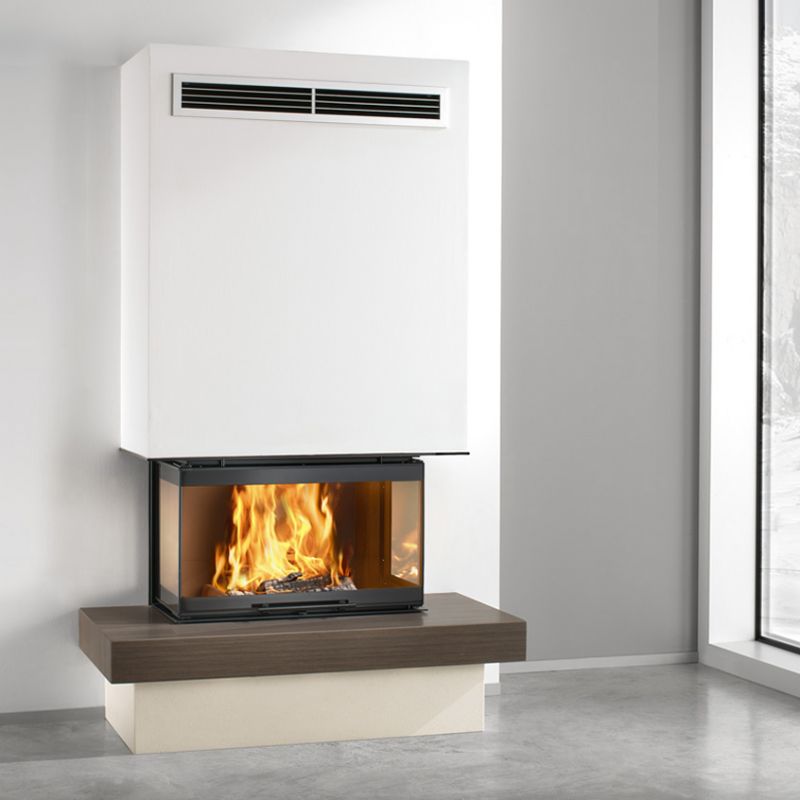

SLIDE

marble cladding

The Bianco Panna marble of the superscript and the Pietra Venghè of the large base create refined chromatic effects, emphasized by the light from the lighted flame. Moreover, Slide is equipped with a blade under the hood in black painted steel.

TECH 3

dimensioni SILIDE

Swiss ordinance on Air Pollution Control (OlAt) Swiss ordinance on Air Pollution Control (OlAt) German order against air pollution Austrian federal standard art. 15a European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Technical data

  classe-A
  TECH 3
  natural convection
output 8,4 - 16,9 kW
nominal thermal output 13,0 kW
CO emission at 13% oxygen ≤ 0,10 %
efficiency ≥ 80,0 %
average fuel consumption 3,70 kg/h
flue gas mass flow 12,1 g/s
flue gas temperature 245 °C
flue draught pressure 12 Pa
flue exite pipe Ø 250 mm
internal section of chimney flue Ø 25 / 25x25 cm
min. height of chimney flue 4 (with ø 20cm pipe reducer min height 6m) m
air inlet ducts 2 x Ø 15 cm
net weight 232 kg
weight with packaging 257 kg

Features

caminetto a legna con vetro a tre facce per una più ampia visione del fuoco. La porta è interamente in vetro ceramico con apertura a saliscendi; i due vetri laterali sono apribili ad anta per agevolare la pulizia. Camera di combustione rivestita in CMtech®, refrattario realizzato con spessori importanti. Il caminetto può essere completato con due kit opzionali per distribuzione dell’aria calda sia nella versione naturale che ventilata.
