SLIDE CON PANCA

claddings for fireplaces

SLIDE CON PANCA

marble cladding

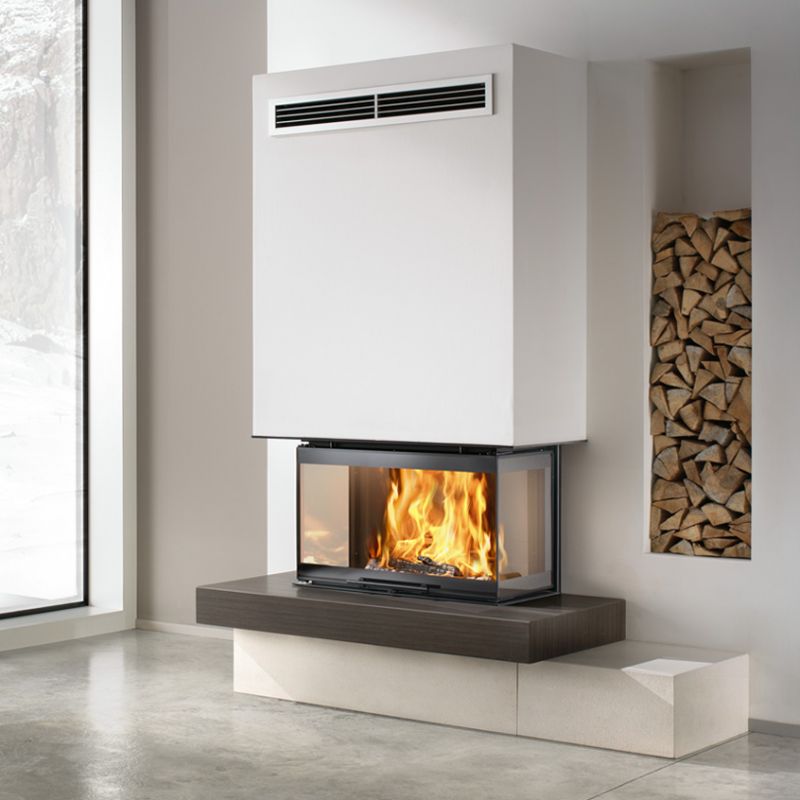

The Bianco Panna marble of the top and the reversible bench and the large base in Pietra Venghè create refined chromatic effects, emphasized by the light from the lighted flame. Moreover, Slide is equipped with a blade under the hood in black painted steel.

TECH 3 is the wood-burning fireplace with three-sided glass for a wider view of the fire. The door is made entirely of ceramic glass with a drop-down opening; the two side windows can be opened with doors for easier cleaning. Combustion chamber lined with CMtech®, refractory made with significant thicknesses. The fireplace can be integrated with two optional kits for air ducting and distribution. The first kit keeps the fireplace natural convection, while the second converts it to ventilated and forced air.

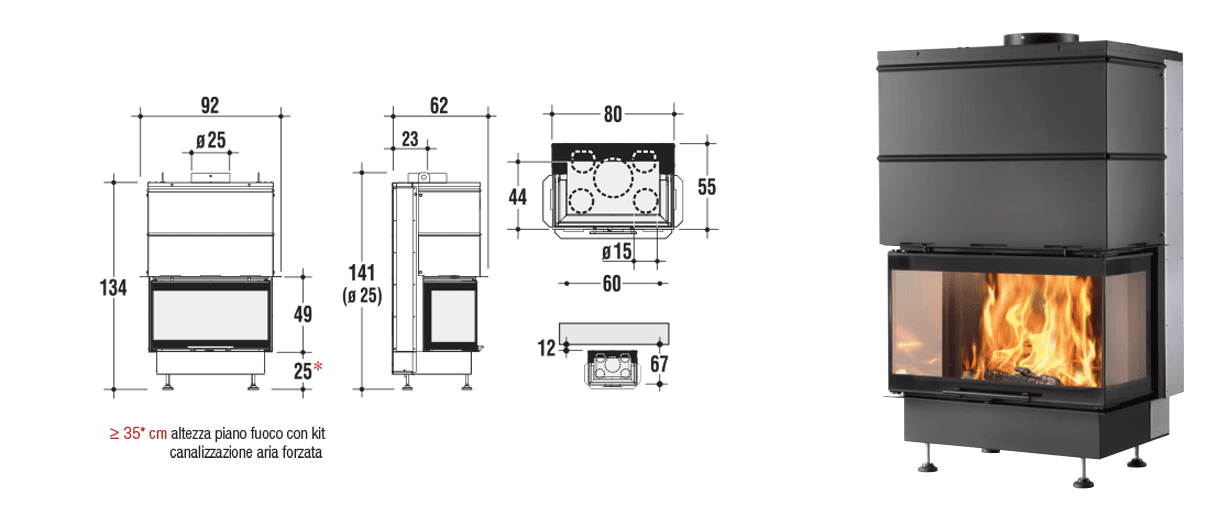

TECH 3

SLIDE CON PANCA

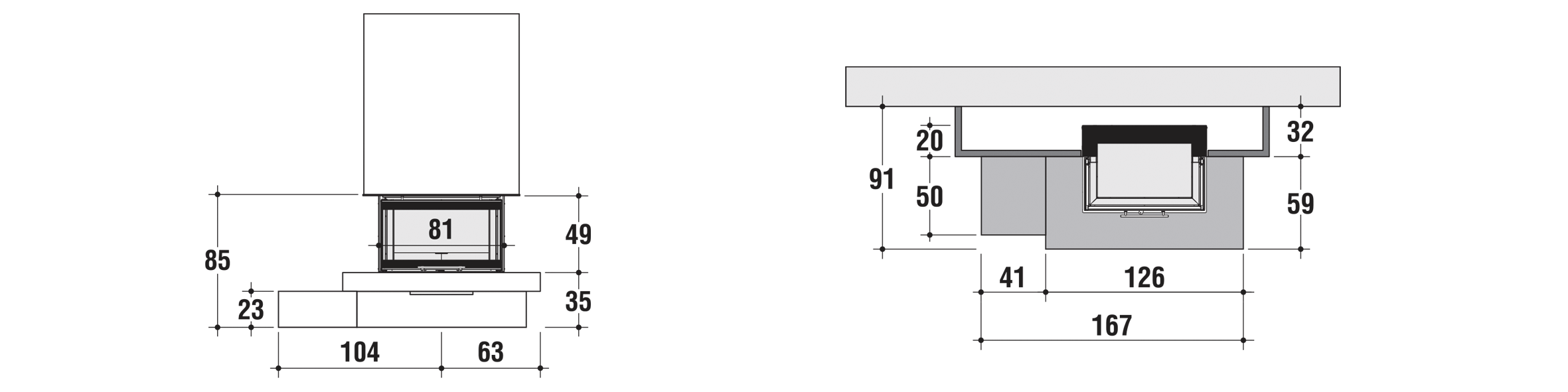

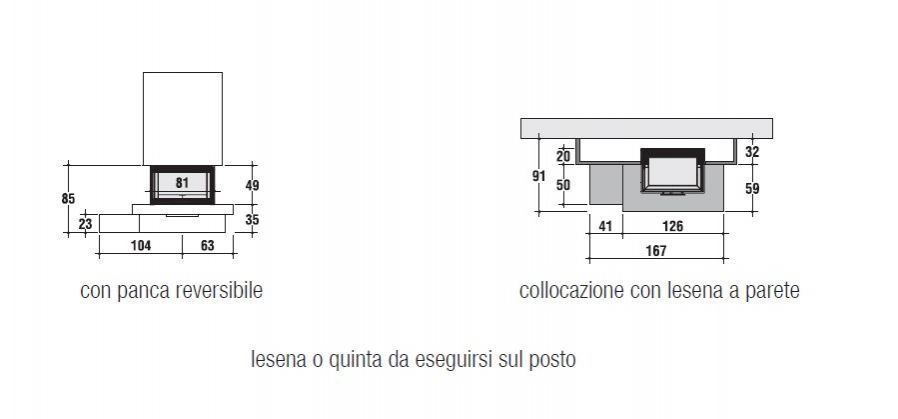

SLIDE CON PANCA (REVERSIBIL) 's dimensions

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Technical data

  classe-AA
  TECH 3
  convezione naturale
Quality class (DM 186 - 7/11/2017) 4-stelle
Global thermal output 16,0 kW
Nominal thermal output 13,0 kW
CO emission at 13% of oxygen 0,0919 %
Efficiency (η) 81 %
Primary Particulate (PP) (at 13% oxygen) 28 mg/Nm3
COT (at 13% oxygen) 36 mg/Nm3
Fuel consumption 3,70 kg/h
Smokes mass flow 12,1 g/s
Smokes temperature 262 °C
Flue draught pressure 12 Pa
Fuel capacity Ø 250 mm
Internal flue section Ø 25 / 25x25 cm
Minimum flue height 4 (con riduzione ø 20cm altezza minima 6m) m
Air inlet ducts 2 x Ø 15 cm
Heatable surface with certified power 149 *mq
Net weight - Weight with packaging 232 - 257 kg
* con le condizioni riportate nel Catalogo Generale

Features

marble cladding
