claddings for fireplaces

RUSTICO CON PANCA

marble cladding

The modern fireplace that recalls the old country houses: the upper part is made of Travertino Rosato with brickwork, sandblasted with protective and gray fugato treatment, the base and the bench in polished Rosso Asiago marble, the beam and the wooden chest of drawers fir worked in solid wood.

CM P05

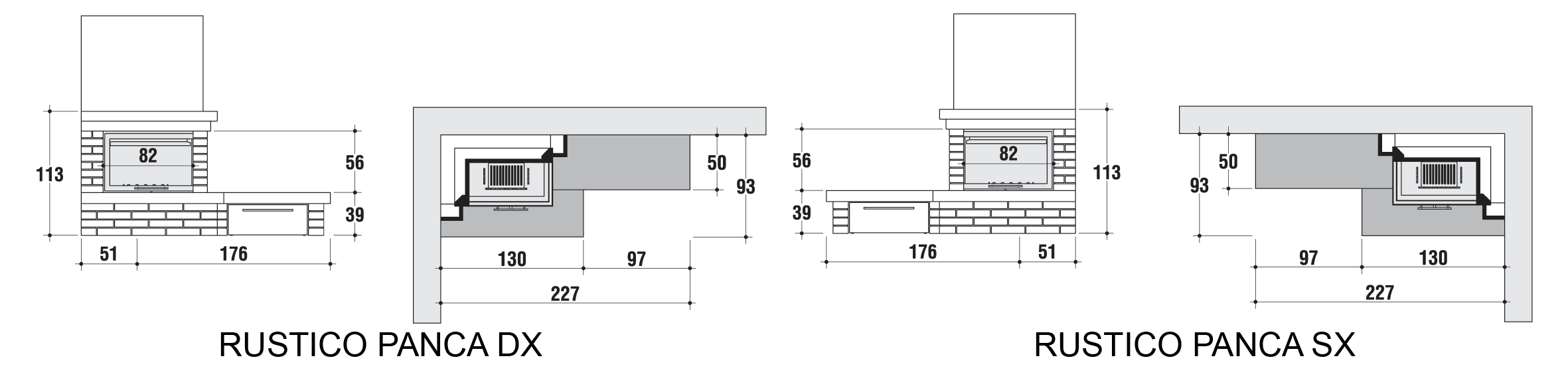

dimensioni RUSTICO CON PANCA

European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Technical data

  classe-AA classe-AA
  CMP 05N CMP 05V
  natural convection forced convection
output 14,3 12,9 kW
nominal thermal output 11,0 11,0 kW
CO emission at 13% oxygen 0,052 0,052 %
efficiency 77,0 85,4 %
average fuel consumption 2,51 2,28 kg/h
flue gas mass flow 12,7 10,1 g/s
flue gas temperature 256 188 °C
flue draught pressure 12 12 Pa
flue exite pipe Ø 180 Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 Ø 18 / 18x18 cm
min. height of chimney flue 4 4 m
air inlet ducts 2 x Ø 12 2 x Ø 12 cm
net weight 234 237 kg
weight with packaging 257 260 kg
CM P05

Features

caminetto a legna con visione del fuoco su due lati senza interruzioni, grazie al vetro ceramico in un’unica lastra sagomata. Si distingue per la porta ad angolo con bordo in acciaio verniciato, apribile a saliscendi con maniglia in acciaio inox; apertura ad anta per la pulizia. Camera di combustione completa di Catalizzatore-Frangifiamma rivestita in CMtech®2, refrattario ceramico, con piano fuoco in ghisa. Sono disponibili versioni ad aria calda ventilata o a convezione naturale.
