MINIMAL

claddings for fireplaces

MINIMAL

frame in metallic grey painted steel

The beauty of simplicity: the frame in metallic grey painted steel enhances the black frame and the large glass, which allows a wide view of the fire.

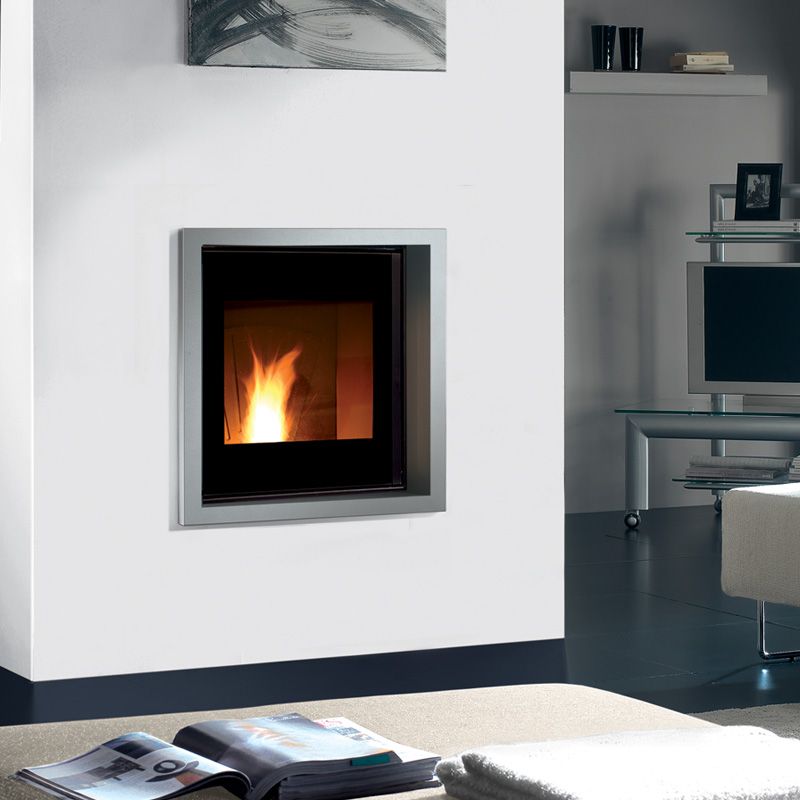

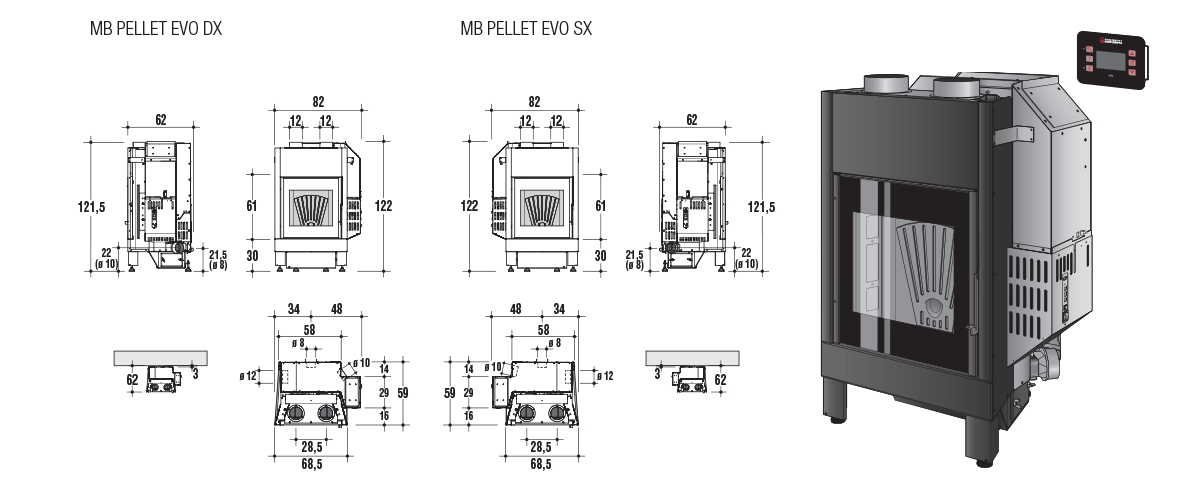

MB PELLET EVO

MINIMAL

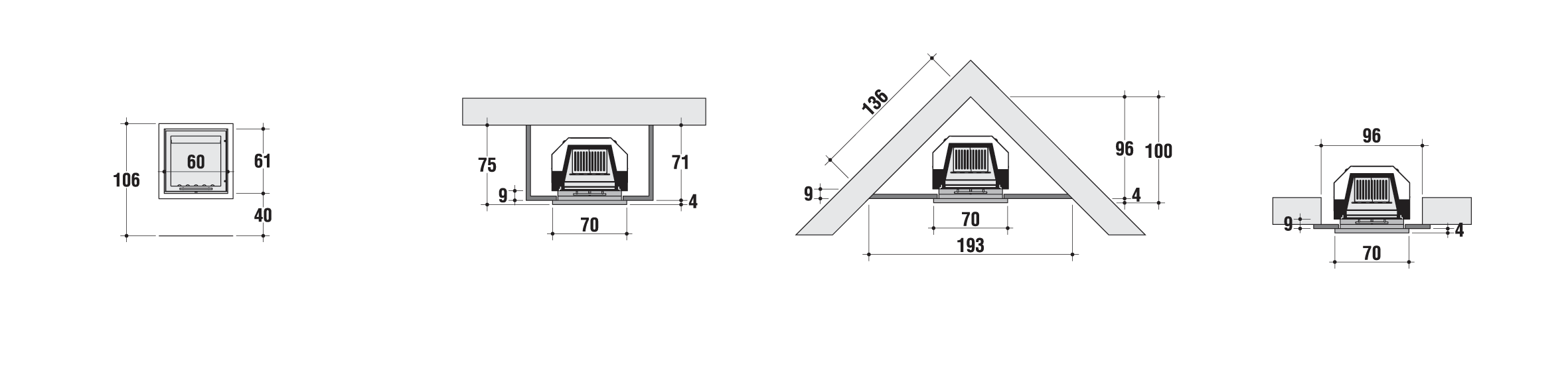

dimensioni MINIMAL 01

German order against air pollution European reference standard for pellet stoves European standards conformity mark
Find reseller Request information

Available versions

MINIMAL 01

MINIMAL 01

MINIMAL 02

MINIMAL 02

MINIMAL 03

MINIMAL 03

MINIMAL 06

MINIMAL 06

MINIMAL TRIO

MINIMAL TRIO

MINIMAL QUADRA

MINIMAL QUADRA

Technical data

  classe-AA
  MB PELLET EVO
global thermal output 17,2 kW
nominal thermal output 4,3 - 15,5 kW
CO emission at 13% oxygen ≤ 0,02 %
efficiency ≥ 89,9 %
fuel consumption 0,91 - 3,51 kg/h
smokes mass flow 5,28 - 13,67 g/s
smokes temperature 66 - 145 °C
flue draught pressure 11 Pa
fuel capacity 50 Kg
autonomy 54,5 - 14 h
fuel exite pipe Ø 100 mm
combustion air intake Ø 80 mm
net weight 175 kg
weight with packaging 200 kg
MB PELLET EVO

Features

frame in metallic grey painted steel

caminetto a pellet con porta quadrata interamente in vetro ceramico, apribile ad anta. Camera di combustione rivestita in ghisa. Catalizzatore-Frangifiamma in CMtech®2 (refrattario ceramico) nella parte superiore.



Personalizzazione ed adattabilità ad ogni tipologia di ambiente

Possibilità da parte dell’utente di regolare la taratura della combustione del pellet

Possibilità di canalizzare l’aria fino a 4 metri

Predisposizione per la canalizzazione dell’aria comburente

Silenziosità e massimo comfort

Riduzione dei consumi di pellet per un maggiore risparmio

Riduzione delle emissioni inquinanti

Adattabilità massima ad ogni tipo di pellet, alla canna fumaria e alle diverse tipologie di installazione

Manutenzione minima e facile: la pulizia del monoblocco è semplice e veloce

Durata maggiore, garantita dall’utilizzo della ghisa

Certificato per ottenere i benefici del Conto Termico 2.0 e delle detrazioni fiscali
