ESSENTIAL

claddings for fireplaces

ESSENTIAL

frame in black painted steel

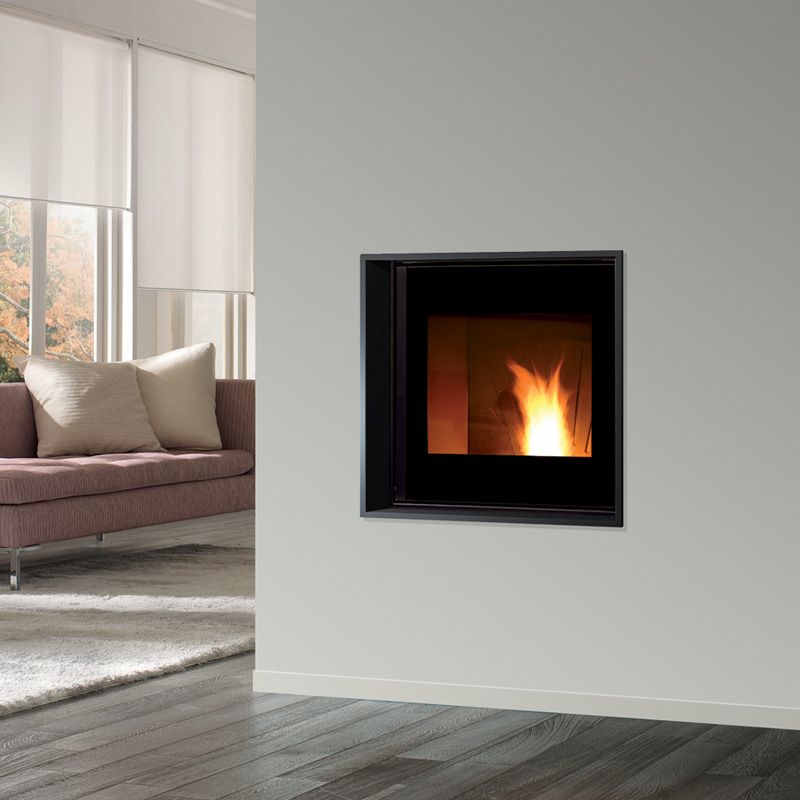

Essential and contemporary lines, which adapt to any type of furniture and environment. The thin frame is in black painted steel and the large glass allows a great view of the fire.

MB PELLET W

German order against air pollution Austrian federal standard art. 15a European reference standard for pellet stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark
Find reseller Request information

Available versions

pellet ESSENTIAL 01

pellet ESSENTIAL 01

wood ESSENTIAL 02

wood ESSENTIAL 02

wood ESSENTIAL 03

wood ESSENTIAL 03

wood ESSENTIAL 06

wood ESSENTIAL 06

wood ESSENTIAL 80L

wood ESSENTIAL 80L

wood ESSENTIAL 01

wood ESSENTIAL 01

Technical data

  classe-AA classe-AA classe-AA
  MB PELLET W 19 MB PELLET W 23 MB PELLET W 27
nominal thermal output 4,5 - 19,0 6,0 - 23,5 6,5 - 27,0 kW
heat output tranferred to room air 2,0 - 4,0 2,0 - 4,5 2,5 - 4,0 kW
heat output transferred to water 2,5 - 15,0 4,0 - 19,0 4,0 - 23,0 kW
CO emission at 13% oxygen ≤ 0,02 ≤ 0,02 ≤ 0,02 %
efficiendy ≥ 90,0 ≥ 90,0 ≥ 90,0 %
fuel consumption 0,9 - 4,4 1,4 - 5,5 1,4 - 6,4 kg/h
smokes mass flow 6,4 - 14,0 8,1 - 15,8 8,6 - 16,1 g/s
smokes temperature 63 - 123 73 - 134 76 - 144 °C
flue draught pressure 12 12 12 Pa
fuel capacity 40 40 40 Kg
autonomy 44 - 9 28,5 - 7 28,5 - 6 h
fuel exit pipe Ø 100 Ø 100 Ø 100 mm
combustion air intake Ø 60 Ø 60 Ø 60 mm
net weight 195 195 195 kg
weight with packaging 213 213 213 kg

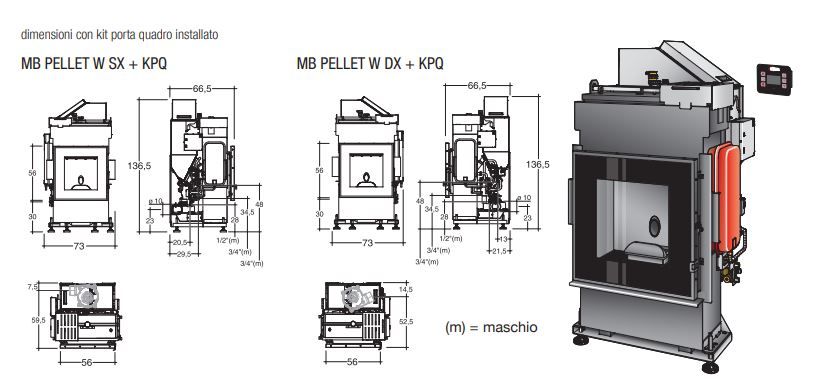

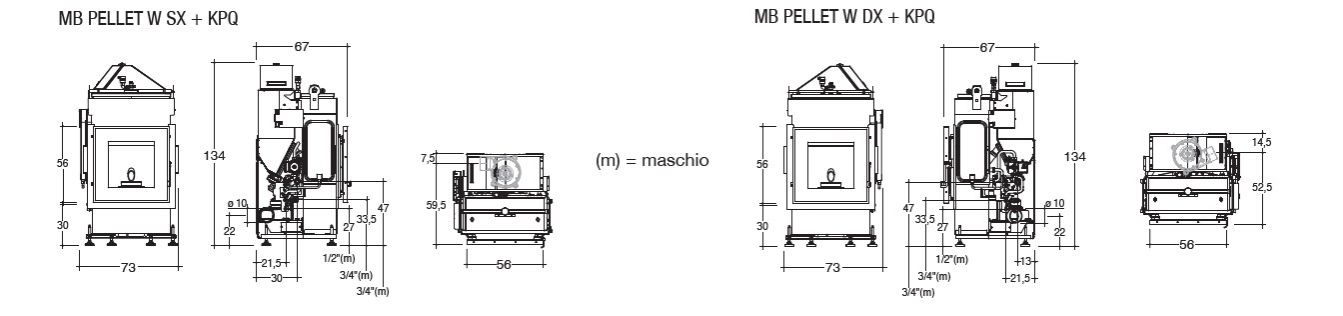

MB PELLET W
