claddings for fireplaces


marble cladding

Simple design and regular shapes. Biellatre / T is made of light bushhammered marble, the base in polished Asiago Red marble. The beam is made of veneered cherry wood.

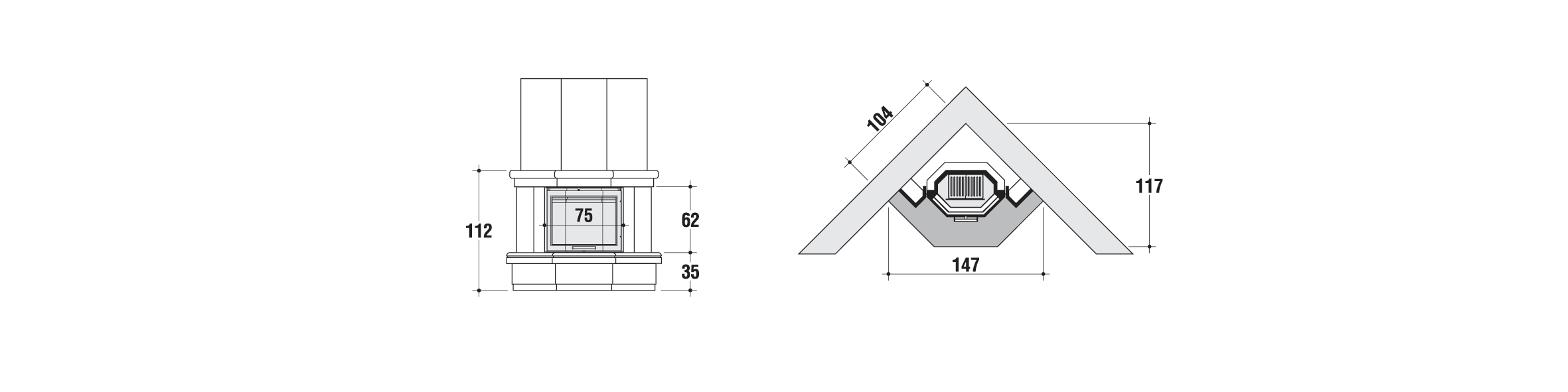

dimensioni BIELLATRE/T

European reference standard for inserts and fireplaces European standards conformity mark

Technical data

  classe-A classe-A
  natural convection forced convection
output 7,1 - 14,3 7,1 -14,3 kW
nominal thermal output 11,0 11,0 kW
CO emission at 13% oxygen ≤ 0,12 ≤ 0,20 %
efficiency ≥ 79,6 ≥ 79,5 %
average fuel consumption 3,00 3,31 kg/h
flue gas mass flow 13,18 16,16 g/s
flue gas temperature 250 207,9 °C
flue draught pressure 12 10,8 Pa
flue exite pipe Ø 180 Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 Ø 18 / 18x18 cm
min. height of chimney flue 4 4 m
air inlet ducts 2 x Ø 12 2 x Ø 12 cm
net weight 194 196 kg
weight with packaging 215 217 kg


caminetto a legna dalle linee tradizionali con porta sagomata a tre lati, bordata in acciaio verniciato e vetro ceramico intero. Apertura a saliscendi con maniglia isolata termicamente e ad anta per la pulizia. Camera di combustione completa di Catalizzatore-Frangifiamma rivestita in CMtech®2, refrattario ceramico, con piano fuoco in ghisa. Sono disponibili versioni ad aria calda ventilata o a convezione naturale.
