AMALFI/M

Claddings for fireplaces

AMALFI/M

marble cladding

Timeless lines and design, light and delicate tones: the Amalfi / M cladding is made of light bush-hammered marble, with a base in Giallo Oro marble, while the beam is in cherry wood veneer, light color.

MB MEGAIDRO W , wood-burning fireplace for heating water, large size. It is distinguished by the rectangular shape of the door, entirely made of ceramic glass; an opening with ups and downs for cleaning. Combustion chamber lined with CMtech, refractory made with significant thicknesses. The two accessories for the open and closed expansion pot and the domestic hot water production kit are optional.

MB MEGAIDRO W

AMALFI/M

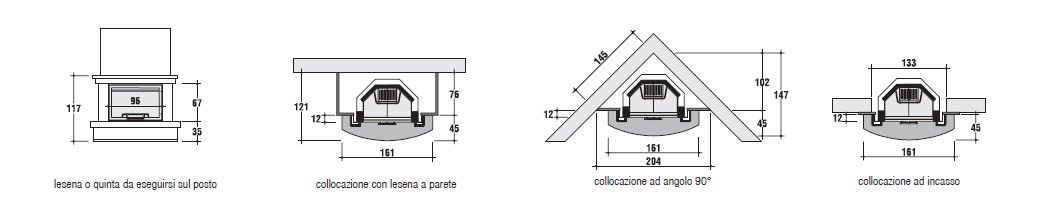

AMALFI/M's dimensions

European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark European reference standard for pellet stoves
Find reseller Request information

Technical data

  classe-AA classe-AA
  MEGAIDRO W31 MEGAIDRO W35
Quality class (DM 186 - 7/11/2017) 5-stelle 5-stelle
Global thermal output 28,9 35,0 kW
Nominal thermal output 24,9 29,8 kW
Power rendered to the environment 11,4 12,6 kW
Power rendered to water 13,5 17,2 kW
CO emission at 13% of oxygen 0,0353 0,0300 %
Efficiency (η) 86 85 %
Primary Particulate (PP) (at 13% oxygen) 14 20 mg/Nm3
COT (at 13% oxygen) 22 8 mg/Nm3
Maximum working pressure 3 3 bar
Fuel consumption 6,8 8,2 kg/h
Smokes mass flow 22,7 24,9 g/s
Smokes temperature 182 200 °C
Flue draught pressure 11 11 Pa
Smokes exite pipe Ø 250 Ø 250 mm
Internal flue section Ø 25 / 25x25 Ø 25 / 25x25 mm
Minimum flue height 5 5 m
Air inlet ducts 100 100 mm
Heatable surface with certified power 286 342 *mq
Net weight - Weight with packaging 409 - 432 409 - 432 kg
* with the conditions reported in the General Catalogue
